Description

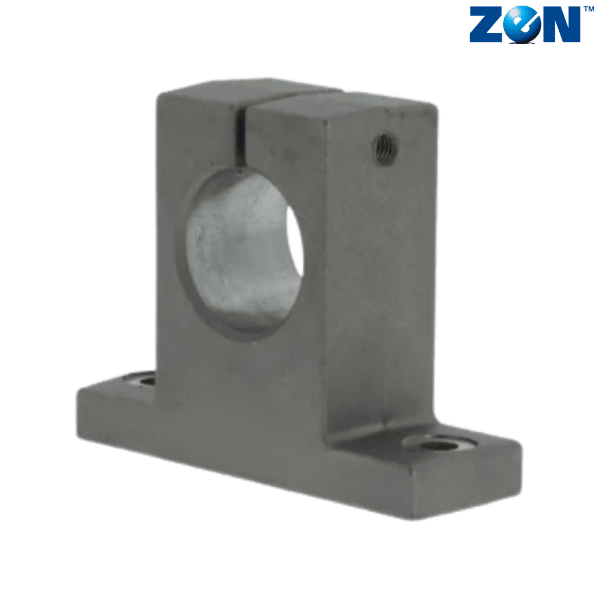

Brand - ZEN
Item Number - SK20 ZEN
Category - Aluminium Pillow Blocks (SK)
Shaft Diameter (mm) - 20
H (mm) - 31
E (mm) - 30
W (mm) - 60
L (mm) - 20
F (mm) - 51
G (mm) - 10
P (mm) - 30
B (mm) - 45
S (mm) - 6
Clamping Bolt - M5
Mounting Bolt - M6
Weight (kg) - 0.07
Material - 6063 Aluminum Alloy-T6
** Images are for representation purposes only
