Description
Brand - ZEN
Item Number - SK16 ZEN

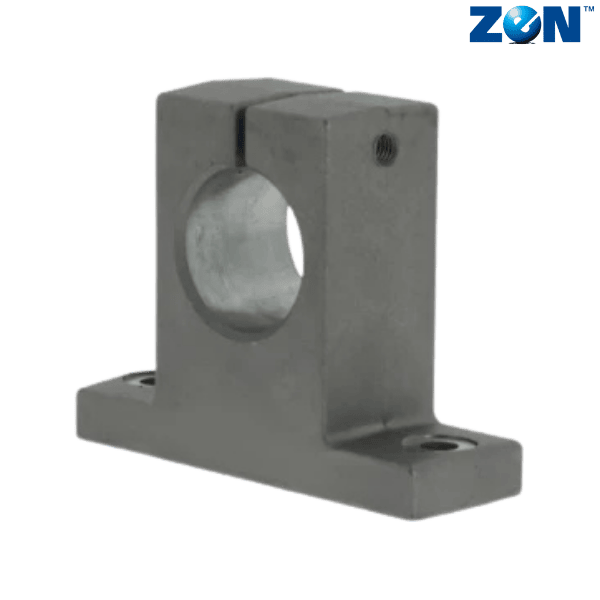

Category - Aluminium Pillow Blocks (SK)
Shaft Diameter (mm) - 16
H (mm) - 27
E (mm) - 24
W (mm) - 48
L (mm) - 16
F (mm) - 44
G (mm) - 8
P (mm) - 25
B (mm) - 38
S (mm) - 5
Clamping Bolt - M4
Mounting Bolt - M5
Weight (kg) - 0.04
Material - 6063 Aluminum Alloy-T6
** Images are for representation purposes only
