Description
Brand - ZEN
Item Number - SK13 ZEN

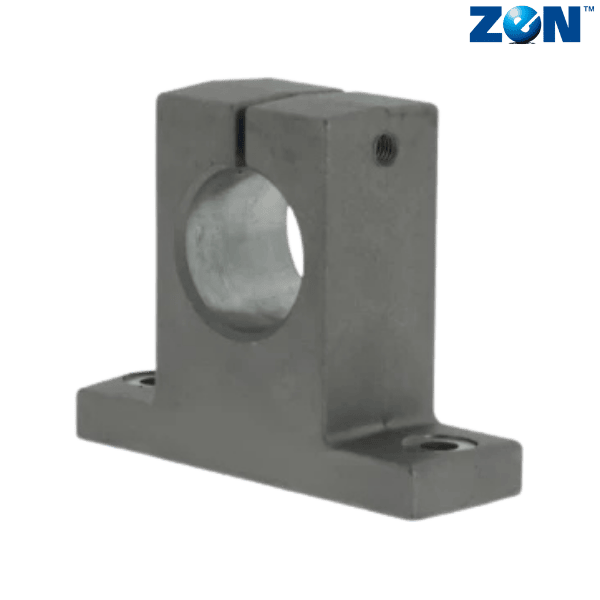

Category - Aluminium Pillow Blocks (SK)
Shaft Diameter (mm) - 13
H (mm) - 23
E (mm) - 21
W (mm) - 42
L (mm) - 14
F (mm) - 37.5
G (mm) - 6
P (mm) - 20
B (mm) - 32
S (mm) - 5
Clamping Bolt - M4
Mounting Bolt - M5
Weight (kg) - 0.03
Material - 6063 Aluminum Alloy-T6
** Images are for representation purposes only
