Description
Brand - ZEN
Item Number - SK10 ZEN
Category - Aluminium Pillow Blocks (SK)
Shaft Diameter (mm) - 10
H (mm) - 20
E (mm) - 21
W (mm) - 42
L (mm) - 14
F (mm) - 32.8
G (mm) - 6
P (mm) - 18
B (mm) - 32
S (mm) - 5
Clamping Bolt - M4
Mounting Bolt - M5
Weight (kg) - 0.024
Material - 6063 Aluminum Alloy-T6

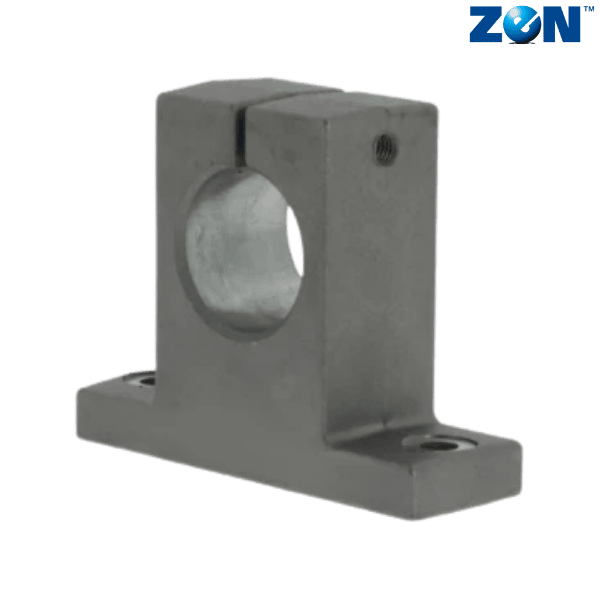

** Images are for representation purposes only
