Description
Brand - ZEN
Item Number - SK006 ZEN
Category - Stainless steel Inserts (SK)
Shaft Diameter (d) mm - 30
Outer Diameter (D) mm - 55
Bi (mm) - 24.5
Be (mm) - 13
r (mm) - 1.5
n (mm) - 6.5
G (mm) - 5
w (mm) - 38
ds (mm) - M5X0.50
Dynamic Load Rating (N) - 1350
Static Load Rating (N) - 845
Weight (kg) - 0.18

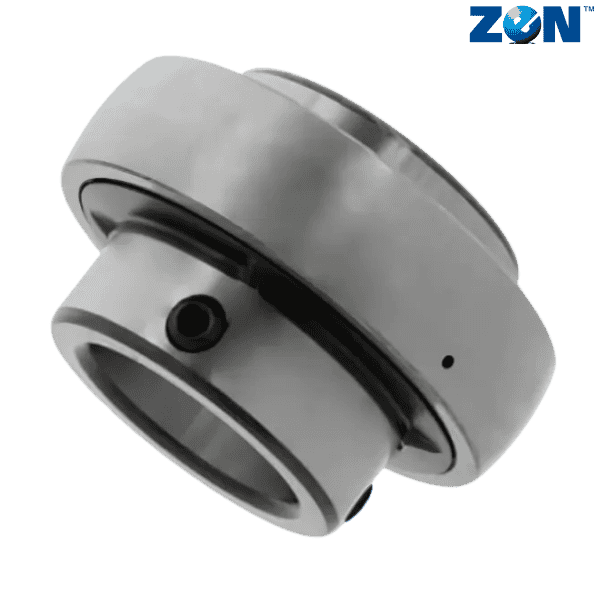

** Images are for representation purposes only
