Description
Brand - ZEN
Item Number - SK005 ZEN
Category - Stainless steel Inserts (SK)
Shaft Diameter (d) mm - 25
Outer Diameter (D) mm - 47
Bi (mm) - 22.5
Be (mm) - 12
r (mm) - 1
n (mm) - 6
G (mm) - 4.5
w (mm) - 31.7
ds (mm) - M5X0.50
Dynamic Load Rating (N) - 1030
Static Load Rating (N) - 595
Weight (kg) - 0.12

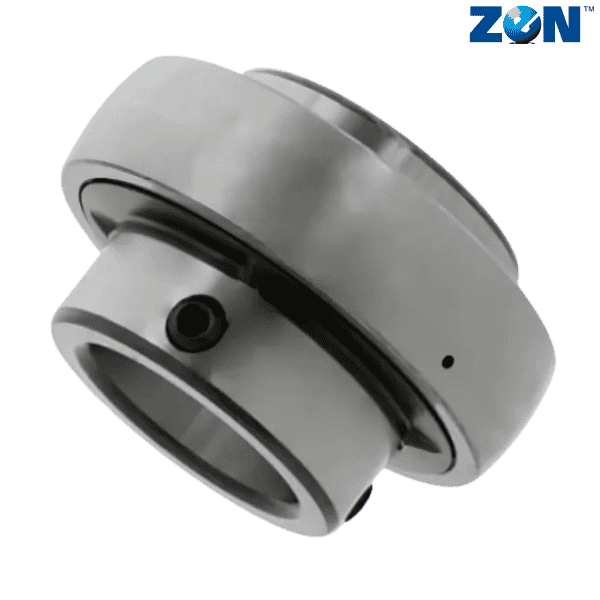

** Images are for representation purposes only
