Description
Brand - ZEN
Item Number - SK004 ZEN
Category - Stainless steel Inserts (SK)
Shaft Diameter (d) mm - 20
Outer Diameter (D) mm - 42
Bi (mm) - 21
Be (mm) - 12
r (mm) - 1
n (mm) - 6
G (mm) - 4
w (mm) - 27
ds (mm) - M5X0.50
Dynamic Load Rating (N) - 955
Static Load Rating (N) - 516
Weight (kg) - 0.1

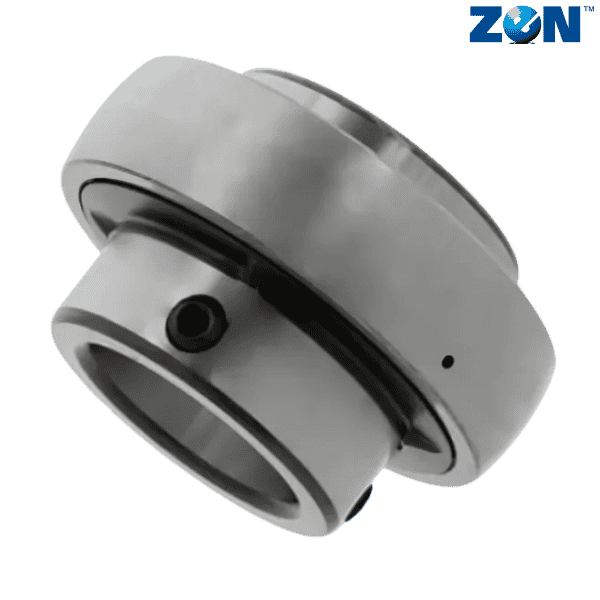

** Images are for representation purposes only
