Description

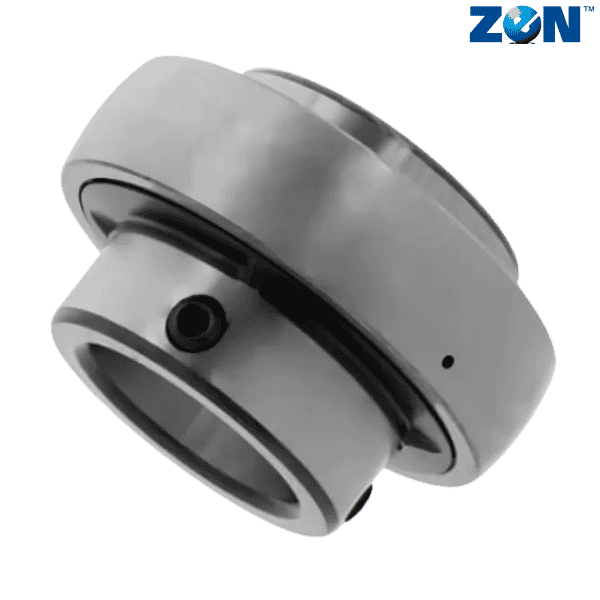

Brand - ZEN
Item Number - SK003 ZEN
Category - Stainless steel Inserts (SK)
Shaft Diameter (d) mm - 17
Outer Diameter (D) mm - 35
Bi (mm) - 17.5
Be (mm) - 10
r (mm) - 0.5
n (mm) - 5
G (mm) - 3.5
w (mm) - 23.1
ds (mm) - M4X0.50
Dynamic Load Rating (N) - 610
Static Load Rating (N) - 335
Weight (kg) - 0.07
** Images are for representation purposes only
