Description
Brand - ZEN
Item Number - SK002 ZEN
Category - Stainless steel Inserts (SK)
Shaft Diameter (d) mm - 15
Outer Diameter (D) mm - 32
Bi (mm) - 16.5
Be (mm) - 9
r (mm) - 0.5
n (mm) - 4.5
G (mm) - 3.5
w (mm) - 20.02
ds (mm) - M4X0.50
Dynamic Load Rating (N) - 570
Static Load Rating (N) - 290
Weight (kg) - 0.06

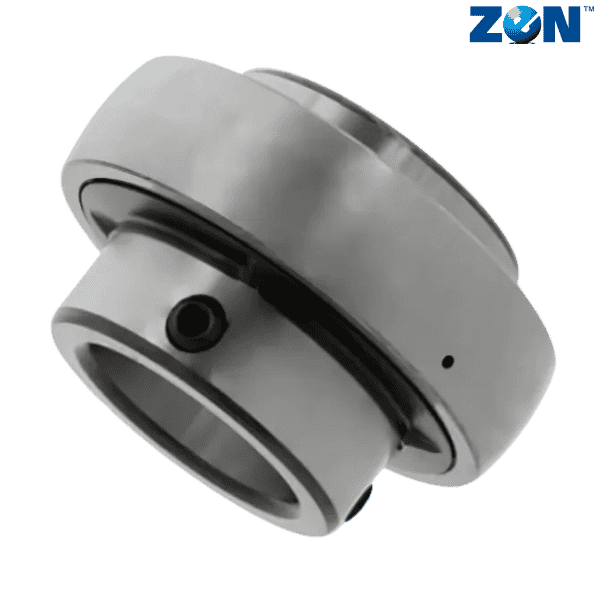

** Images are for representation purposes only
