Description
Brand - ZEN
Item Number - SK001 ZEN
Category - Stainless steel Inserts (SK)
Shaft Diameter (d) mm - 12
Outer Diameter (D) mm - 28
Bi (mm) - 14.5
Be (mm) - 8
r (mm) - 0.5
n (mm) - 4
G (mm) - 3
w (mm) - 17.35
ds (mm) - M3X0.35
Dynamic Load Rating (N) - 520
Static Load Rating (N) - 245
Weight (kg) - 0.03

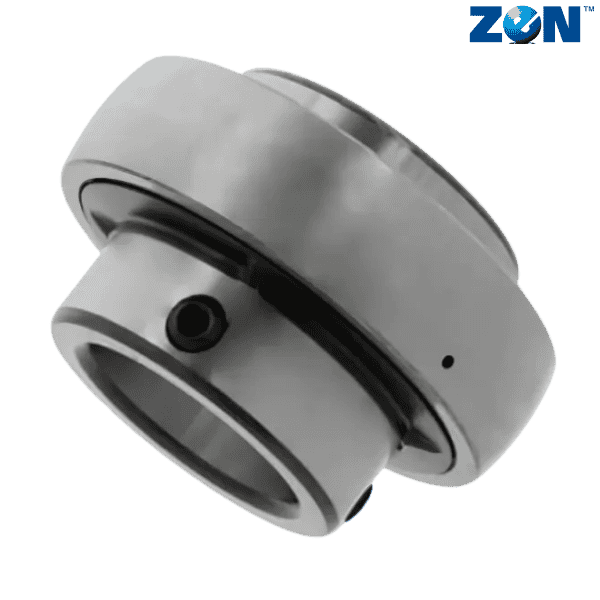

** Images are for representation purposes only
