Description

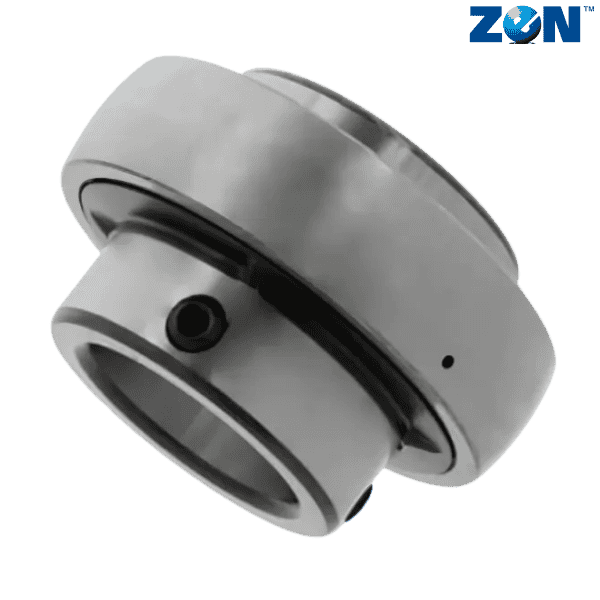

Brand - ZEN
Item Number - SK000 ZEN
Category - Stainless steel Inserts (SK)
Shaft Diameter (d) mm - 10
Outer Diameter (D) mm - 26
Bi (mm) - 14
Be (mm) - 8
r (mm) - 0.5
n (mm) - 4
G (mm) - 3
w (mm) - 14.75
ds (mm) - M3X0.35
Dynamic Load Rating (N) - 470
Static Load Rating (N) - 200
Weight (kg) - 0.02
** Images are for representation purposes only
