SJB3644XXC RBC LUBRON

Brand - RBC LUBRON
Item Number - SJB3644XXC RBC LUBRON
Category - Solid Journal Bushings (SJB) - Composite

Principal Dimensions & Load Ratings (Imperial) :
Minimum Inner Diameter (d) - 2.2555 inch
Maximum Inner Diameter (d) - 2.2595 inch
Maximum Outer Diameter (D) - 2.7545 inch
Minimum Outer Diameter (D) - 2.7525 inch
Minimum Recommended Shaft Diameter - 2.2495 inch
Maximum Recommended Shaft Diameter - 2.25 inch
Minimum Recommended Housing Diameter - 2.75 inch
Maximum Recommended Housing Diameter - 2.751 inch
Minimum Running Clearance - 0.001 inch
Maximum Running Clearance - 0.0085 inch
Interchangeable GGB® Part Number - GM3644
Interchangeable Polygon® Part Number - PWR36M44

Description of Suffixes and Prefixes :
SJB - Solid Journal Bushing - Imperial
XX - Specify Bushing Length

Other salient points to be noted :
• 1/4'' Wall
• Material - Composite
• Fiberglide® - Bonded to the Inner Diameter

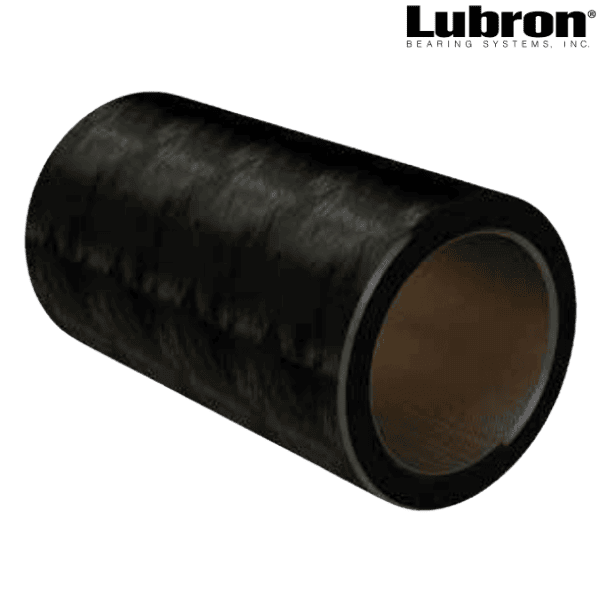

♦ ♦ Images are for representation purposes only
