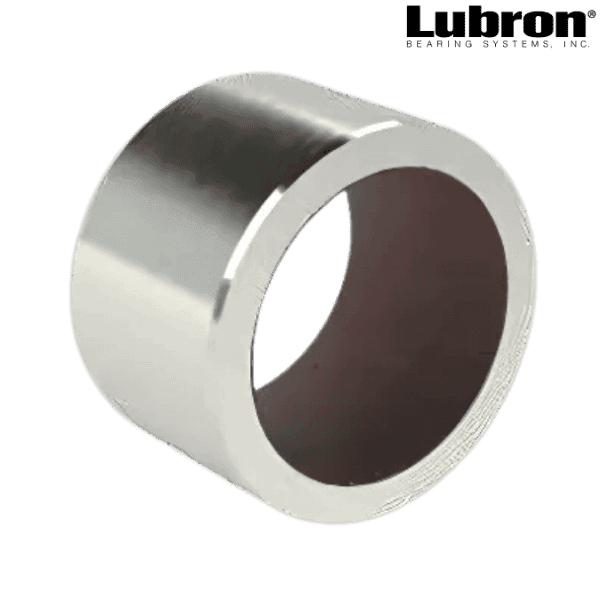

SJB2824S RBC LUBRON

Brand - RBC LUBRON
Item Number - SJB2824S RBC LUBRON
Category - Solid Journal Bushings (SJB) - Stainless Steel

Principle Dimension & Load Ratings (Imperial) :
Minimum Recommended Shaft Diameter - 1.7475 inch
Maximum Recommended Shaft Diameter - 1.75 inch
Minimum Recommended Housing Bore * - 2.2482 inch
Maximum Recommended Housing Bore * - 2.25 inch
Bearing Length - 1.5 (+.000 / -.010) inch
Wall Thickness (inch) - 0.25 inch
Legacy Transport Dynamics Interchangeable Part Number - SJS2824

Description of Suffixes and Prefixes :
SJB - Solid Journal Bushing - Imperial
S - Stainless Steel

Other salient points to be noted :
Characteristics :
• 1/4'' Wall
• Material - 17-4 Stainless Steel
• Fiberglide® - Bonded to the Inner Diameter

* Recommended housing bores are for steel housings.

♦ ♦ Images are for representation purposes only
