SJ 9728 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - SJ 9728 RBC
Category - Pitchlign Precision Ground Heavy Duty Needle Roller Bearings

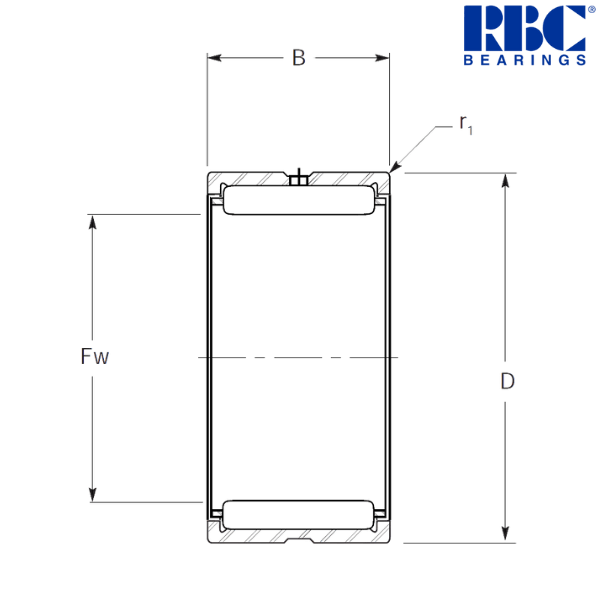

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (Fw) - 4.25 inch
Minimum Inside Diameter (Fw) - 4.2512 inch
Maximum Inside Diameter (Fw) - 4.2526 inch
Maximum Outside Diameter (D) - 5.25 inch
Minimum Outside Diameter (D) - 5.249 inch
Width (B) - 2 inch
Maximum Housing Fillet (r1) - 0.1 inch
Approximate Weight - 3.35 lbs
Housing Shoulder Diameter - 4.6875 inch
Dynamic Capacity (C) - 30600 lbf
Static Capacity (C0) - 85200 lbf
Limit Speed - 3100 rpm
Maximum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 4.25 inch
Minimum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 4.2491 inch
Maximum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 4.2486 inch
Minimum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 4.2477 inch
Minimum Recommended Housing Bore (Slip Fit ISO H7) - 5.25 inch
Maximum Recommended Housing Bore (Slip Fit ISO H7) - 5.2516 inch
Mean Fit Recommended Housing Bore (Slip Fit ISO H7) - 0.0013L inch
Minimum Recommended Housing Bore (Press Fit ISO H7) - 5.248 inch
Maximum Recommended Housing Bore (Press Fit ISO H7) - 5.2495 inch
Mean Fit Recommended Housing Bore (Press Fit ISO H7) - 0.0009T inch
MS 51961 Suffix ** - (-46)

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.5195332 kg

Other salient points to be noted :
• The part numbers of matching inner rings are the same as the corresponding bearing numbers, except the prefix SJ is replaced by the prefix IR. Alternate inner rings with different bores are available for several bearings. Alternate inner rings carry suffix -C or -D
• Example: Matching inner rings for bearing SJ 9688 ( 4" x 5" x 2") are:
a) IR 9688 D (3 1/4"ID x 4"OD x 2"W) or,
b) IR 9688 (3 3/8"ID x 4"OD x 2"W)
c) IR 9688 C (3 1/2"ID x 4"OD x 2"W)
• Inner rings must be ordered separately

** The bearings meet Military Standard MS 51961

♦ ♦ Images are for representation purposes only
