SJ 9718 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - SJ 9718 RBC
Category - Pitchlign Precision Ground Heavy Duty Needle Roller Bearings

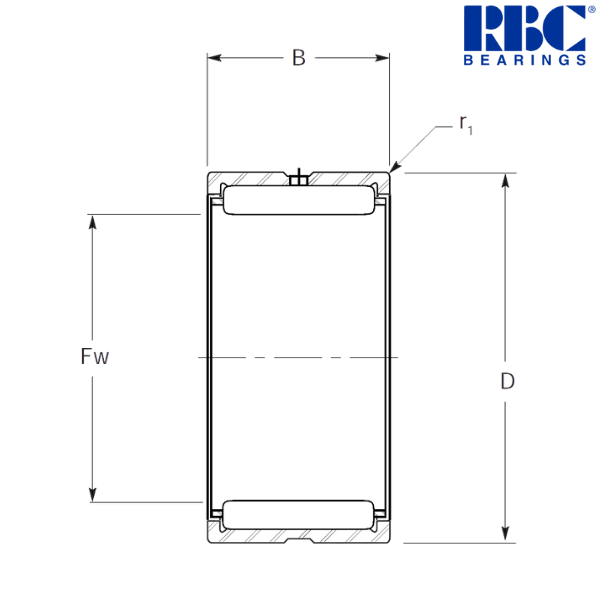

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (Fw) - 4.125 inch
Minimum Inside Diameter (Fw) - 4.1262 inch
Maximum Inside Diameter (Fw) - 4.1274 inch
Maximum Outside Diameter (D) - 5.125 inch
Minimum Outside Diameter (D) - 5.124 inch
Width (B) - 2 inch
Maximum Housing Fillet (r1) - 0.1 inch
Approximate Weight - 3.25 lbs
Housing Shoulder Diameter - 4.5625 inch
Dynamic Capacity (C) - 30200 lbf
Static Capacity (C0) - 82400 lbf
Limit Speed - 3200 rpm
Maximum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 4.125 inch
Minimum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 4.1241 inch
Maximum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 4.1236 inch
Minimum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 4.1227 inch
Minimum Recommended Housing Bore (Slip Fit ISO H7) - 5.125 inch
Maximum Recommended Housing Bore (Slip Fit ISO H7) - 5.1266 inch
Mean Fit Recommended Housing Bore (Slip Fit ISO H7) - 0.0013L inch
Minimum Recommended Housing Bore (Press Fit ISO H7) - 5.123 inch
Maximum Recommended Housing Bore (Press Fit ISO H7) - 5.1245 inch
Mean Fit Recommended Housing Bore (Press Fit ISO H7) - 0.0009T inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.474174 kg

Other salient points to be noted :
• The part numbers of matching inner rings are the same as the corresponding bearing numbers, except the prefix SJ is replaced by the prefix IR. Alternate inner rings with different bores are available for several bearings. Alternate inner rings carry suffix -C or -D
• Example: Matching inner rings for bearing SJ 9688 ( 4" x 5" x 2") are:
a) IR 9688 D (3 1/4"ID x 4"OD x 2"W) or,
b) IR 9688 (3 3/8"ID x 4"OD x 2"W)
c) IR 9688 C (3 1/2"ID x 4"OD x 2"W)
• Inner rings must be ordered separately

♦ ♦ Images are for representation purposes only
