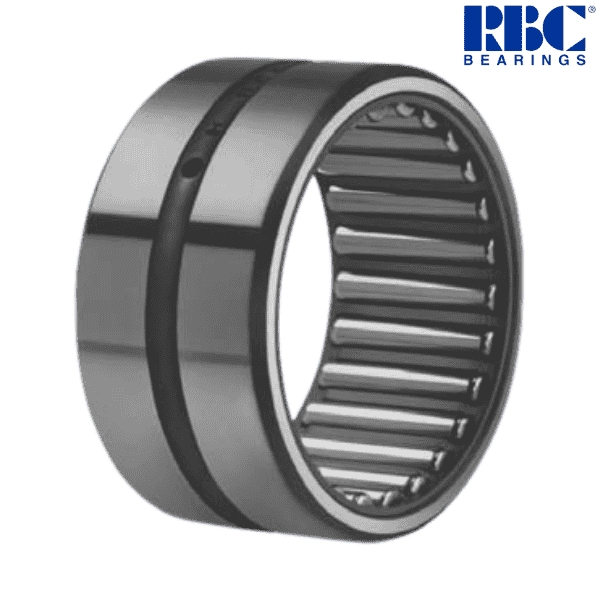

SJ 9687 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - SJ 9687 RBC
Category - Pitchlign Precision Ground Heavy Duty Needle Roller Bearings

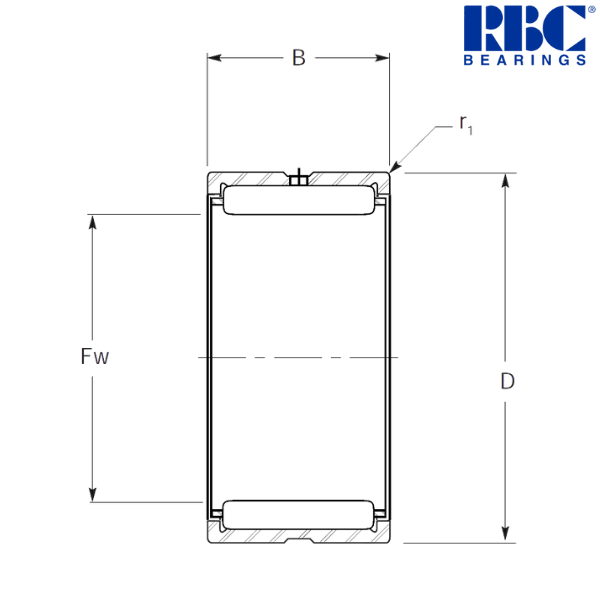

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (Fw) - 4 inch
Minimum Inside Diameter (Fw) - 4.0012 inch
Maximum Inside Diameter (Fw) - 4.0024 inch
Maximum Outside Diameter (D) - 5 inch
Minimum Outside Diameter (D) - 4.999 inch
Width (B) - 1.75 inch
Maximum Housing Fillet (r1) - 0.1 inch
Approximate Weight - 2.79 lbs
Housing Shoulder Diameter - 4.4375 inch
Dynamic Capacity (C) - 25700 lbf
Static Capacity (C0) - 66900 lbf
Limit Speed - 3300 rpm
Maximum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 4 inch
Minimum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 3.9991 inch
Maximum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 3.9986 inch
Minimum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 3.9977 inch
Minimum Recommended Housing Bore (Slip Fit ISO H7) - 5 inch
Maximum Recommended Housing Bore (Slip Fit ISO H7) - 5.0016 inch
Mean Fit Recommended Housing Bore (Slip Fit ISO H7) - 0.0013L inch
Minimum Recommended Housing Bore (Press Fit ISO H7) - 4.998 inch
Maximum Recommended Housing Bore (Press Fit ISO H7) - 4.9995 inch
Mean Fit Recommended Housing Bore (Press Fit ISO H7) - 0.0009T inch
MS 51961 Suffix ** - (-44)

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.26552168 kg

Other salient points to be noted :
• The part numbers of matching inner rings are the same as the corresponding bearing numbers, except the prefix SJ is replaced by the prefix IR. Alternate inner rings with different bores are available for several bearings. Alternate inner rings carry suffix -C or -D
• Example: Matching inner rings for bearing SJ 9688 ( 4" x 5" x 2") are:
a) IR 9688 D (3 1/4"ID x 4"OD x 2"W) or,
b) IR 9688 (3 3/8"ID x 4"OD x 2"W)
c) IR 9688 C (3 1/2"ID x 4"OD x 2"W)
• Inner rings must be ordered separately

** The bearings meet Military Standard MS 51961

♦ ♦ Images are for representation purposes only
