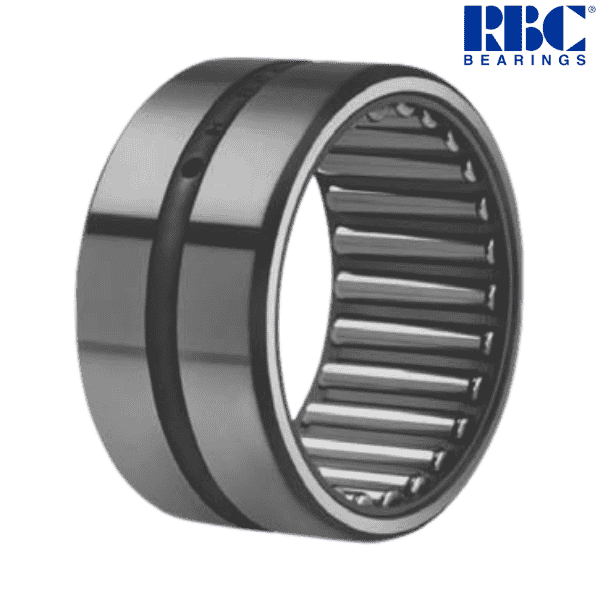

SJ 8537 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - SJ 8537 RBC
Category - Pitchlign Precision Ground Heavy Duty Needle Roller Bearings

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (Fw) - 3.125 inch
Minimum Inside Diameter (Fw) - 3.1261 inch
Maximum Inside Diameter (Fw) - 3.1273 inch
Maximum Outside Diameter (D) - 4 inch
Minimum Outside Diameter (D) - 3.9992 inch
Width (B) - 1.75 inch
Maximum Housing Fillet (r1) - 0.08 inch
Approximate Weight - 1.63 lbs
Housing Shoulder Diameter - 3.5 inch
Dynamic Capacity (C) - 20800 lbf
Static Capacity (C0) - 56000 lbf
Limit Speed - 4300 rpm
Maximum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 3.125 inch
Minimum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 3.1243 inch
Maximum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 3.1238 inch
Minimum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 3.1231 inch
Minimum Recommended Housing Bore (Slip Fit ISO H7) - 4 inch
Maximum Recommended Housing Bore (Slip Fit ISO H7) - 4.0014 inch
Mean Fit Recommended Housing Bore (Slip Fit ISO H7) - 0.0011L inch
Minimum Recommended Housing Bore (Press Fit ISO H7) - 3.9982 inch
Maximum Recommended Housing Bore (Press Fit ISO H7) - 3.9996 inch
Mean Fit Recommended Housing Bore (Press Fit ISO H7) - 0.0007T inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.73935496 kg

Other salient points to be noted :
• The part numbers of matching inner rings are the same as the corresponding bearing numbers, except the prefix SJ is replaced by the prefix IR. Alternate inner rings with different bores are available for several bearings. Alternate inner rings carry suffix -C or -D
• Example: Matching inner rings for bearing SJ 7355 (2" x 2 9/16" x 1 1/4"):
a) IR 7355 D (1 5/8"ID x 2"OD x 1 1/4"W) or,
b) IR 7355 (1 11/16"ID x 2"OD x 1 1/4"W)
• Inner rings must be ordered separately

♦ ♦ Images are for representation purposes only
