SJ 7344 RBC

Brand - RBC
Item Number - SJ 7344 RBC
Category - Pitchlign Precision Ground Heavy Duty Needle Roller Bearings

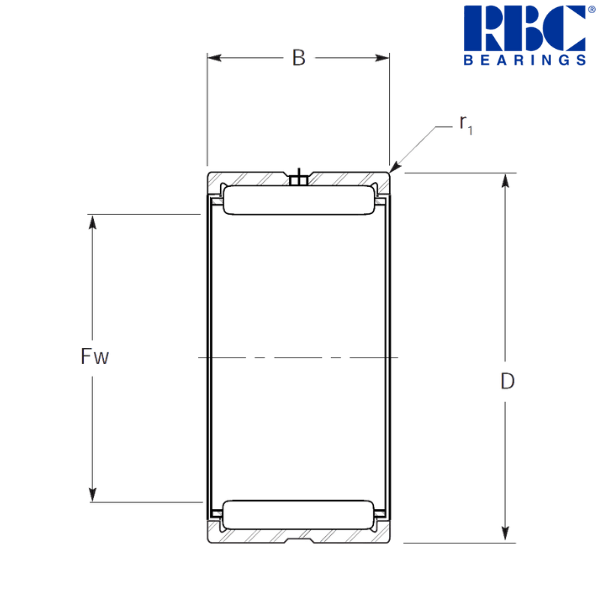

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (Fw) - 1.9375 inch
Minimum Inside Diameter (Fw) - 1.9385 inch
Maximum Inside Diameter (Fw) - 1.9395 inch
Maximum Outside Diameter (D) - 2.5 inch
Minimum Outside Diameter (D) - 2.4994 inch
Width (B) - 1 inch
Maximum Housing Fillet (r1) - 0.06 inch
Approximate Weight - 0.42 lbs
Housing Shoulder Diameter - 2.1875 inch
Dynamic Capacity (C) - 8100 lbf
Static Capacity (C0) - 18100 lbf
Limit Speed - 6900 rpm
Maximum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 1.9375 inch
Minimum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 1.9369 inch
Maximum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 1.9365 inch
Minimum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 1.9359 inch
Minimum Recommended Housing Bore (Slip Fit ISO H7) - 2.5 inch
Maximum Recommended Housing Bore (Slip Fit ISO H7) - 2.5012 inch
Mean Fit Recommended Housing Bore (Slip Fit ISO H7) - 0.0009L inch
Minimum Recommended Housing Bore (Press Fit ISO H7) - 2.4985 inch
Maximum Recommended Housing Bore (Press Fit ISO H7) - 2.4996 inch
Mean Fit Recommended Housing Bore (Press Fit ISO H7) - 0.0006T inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.19050864 kg

Other salient points to be noted :
• The part numbers of matching inner rings are the same as the corresponding bearing numbers, except the prefix SJ is replaced by the prefix IR. Alternate inner rings with different bores are available for several bearings. Alternate inner rings carry suffix -C or -D
• Example: Matching inner rings for bearing SJ 7355 (2" x 2 9/16" x 1 1/4"):
a) IR 7355 D (1 5/8"ID x 2"OD x 1 1/4"W) or,
b) IR 7355 (1 11/16"ID x 2"OD x 1 1/4"W)
• Inner rings must be ordered separately

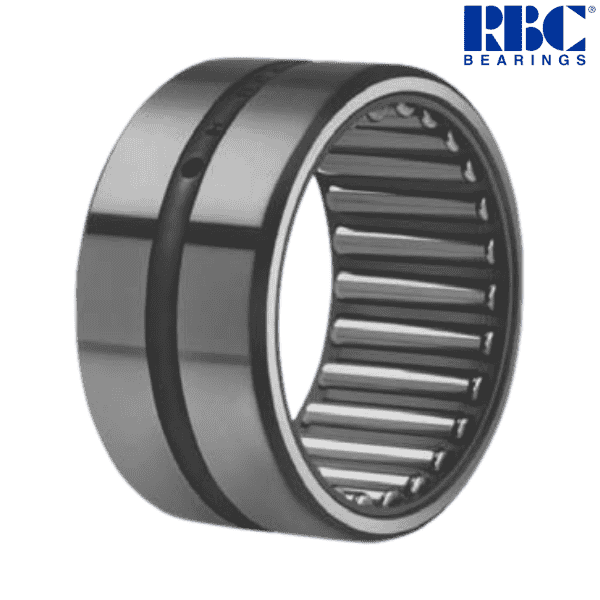

♦ ♦ Images are for representation purposes only
