Description
Brand - RBC
Item Number - SJ 7335* RBC
Category - Pitchlign Precision Ground Heavy Duty Needle Roller Bearings

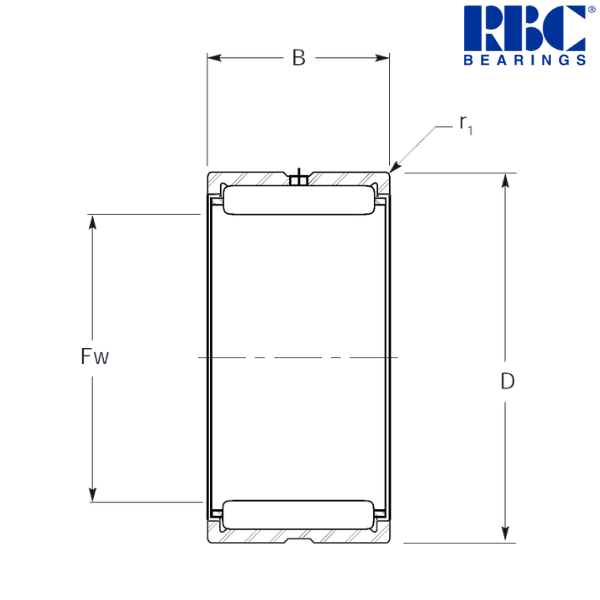

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (Fw) - 1.875 inch
Minimum Inside Diameter (Fw) - 1.876 inch
Maximum Inside Diameter (Fw) - 1.877 inch
Maximum Outside Diameter (D) - 2.4375 inch
Minimum Outside Diameter (D) - 2.4369 inch
Width (B) - 1.25 inch
Maximum Housing Fillet (r1) - 0.06 inch
Approximate Weight - 0.48 lbs
Housing Shoulder Diameter - 2.1875 inch
Dynamic Capacity (C) - 12900 lbf
Static Capacity (C0) - 26600 lbf
Limit Speed - 7100 rpm
Maximum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 1.875 inch
Minimum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 1.8744 inch
Maximum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 1.874 inch
Minimum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 1.8734 inch
Minimum Recommended Housing Bore (Slip Fit ISO H7) - 2.4375 inch
Maximum Recommended Housing Bore (Slip Fit ISO H7) - 2.4387 inch
Mean Fit Recommended Housing Bore (Slip Fit ISO H7) - 0.0009L inch
Minimum Recommended Housing Bore (Press Fit ISO H7) - 2.436 inch
Maximum Recommended Housing Bore (Press Fit ISO H7) - 2.4371 inch
Mean Fit Recommended Housing Bore (Press Fit ISO H7) - 0.0006T inch
MS 51961 Suffix ** - (-29)
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.21772416 kg
Other salient points to be noted :
• The part numbers of matching inner rings are the same as the corresponding bearing numbers, except the prefix SJ is replaced by the prefix IR. Alternate inner rings with different bores are available for several bearings. Alternate inner rings carry suffix -C or -D
• Example: Matching inner rings for bearing SJ 7355 (2" x 2 9/16" x 1 1/4"):
a) IR 7355 D (1 5/8"ID x 2"OD x 1 1/4"W) or,
b) IR 7355 (1 11/16"ID x 2"OD x 1 1/4"W)
• Inner rings must be ordered separately
* These bearings have a radius at both ends of the outer ring. All other outer rings are manufactured with a radius at one end and a break corner at the other.
** The bearings meet Military Standard MS 51961
♦ ♦ Images are for representation purposes only
