Description
Brand - RBC
Item Number - SJ 7264 RBC
Category - Pitchlign Precision Ground Heavy Duty Needle Roller Bearings
Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (Fw) - 1.4375 inch
Minimum Inside Diameter (Fw) - 1.4385 inch
Maximum Inside Diameter (Fw) - 1.4394 inch
Maximum Outside Diameter (D) - 1.9375 inch
Minimum Outside Diameter (D) - 1.937 inch
Width (B) - 1 inch
Maximum Housing Fillet (r1) - 0.04 inch
Approximate Weight - 0.315 lbs
Housing Shoulder Diameter - 1.6875 inch
Dynamic Capacity (C) - 7200 lbf
Static Capacity (C0) - 14200 lbf
Limit Speed - 9000 rpm
Maximum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 1.4375 inch
Minimum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 1.4369 inch
Maximum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 1.4365 inch
Minimum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 1.4359 inch
Minimum Recommended Housing Bore (Slip Fit ISO H7) - 1.9375 inch
Maximum Recommended Housing Bore (Slip Fit ISO H7) - 1.9385 inch
Mean Fit Recommended Housing Bore (Slip Fit ISO H7) - 0.0007L inch
Minimum Recommended Housing Bore (Press Fit ISO H7) - 1.9362 inch
Maximum Recommended Housing Bore (Press Fit ISO H7) - 1.9372 inch
Mean Fit Recommended Housing Bore (Press Fit ISO H7) - 0.0005T inch
MS 51961 Suffix ** - (-20)
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.14288148 kg
Other salient points to be noted :
• The part numbers of matching inner rings are the same as the corresponding bearing numbers, except the prefix SJ is replaced by the prefix IR. Alternate inner rings with different bores are available for several bearings. Alternate inner rings carry suffix -C or -D
• Example: Matching inner rings for bearing SJ 7315 (1 /34” x 2 5/8” x 1 1/4”):
a) IR 7315 (1 7/16”ID x 1 3/4”OD x 1 1/4”W) or,
b) IR 7315 C (1 1/2”ID x 1 3/4”OD x 1 1/4”W)
• Inner rings must be ordered separately
** The bearings meet Military Standard MS 51961

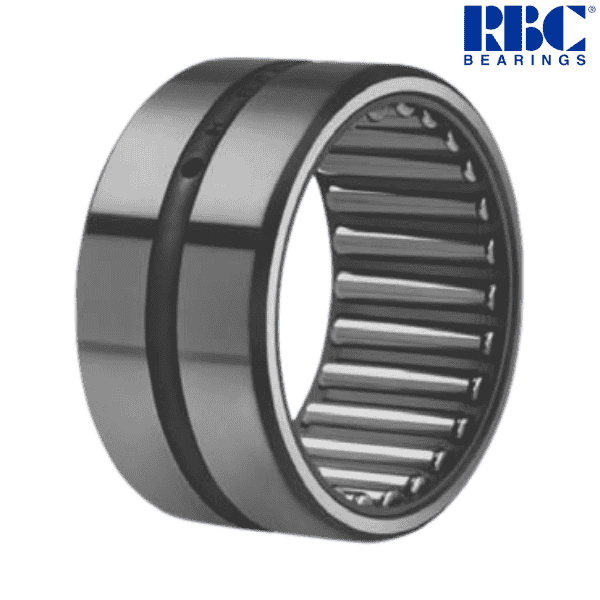

♦ ♦ Images are for representation purposes only
