Description
Brand - RBC
Item Number - SJ 7224 RBC
Category - Pitchlign Precision Ground Heavy Duty Needle Roller Bearings
Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (Fw) - 1.1875 inch
Minimum Inside Diameter (Fw) - 1.1885 inch
Maximum Inside Diameter (Fw) - 1.1894 inch
Maximum Outside Diameter (D) - 1.6875 inch
Minimum Outside Diameter (D) - 1.687 inch
Width (B) - 1 inch
Maximum Housing Fillet (r1) - 0.04 inch
Approximate Weight - 0.262 lbs
Housing Shoulder Diameter - 1.4375 inch
Dynamic Capacity (C) - 6700 lbf
Static Capacity (C0) - 11800 lbf
Limit Speed - 11000 rpm
Maximum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 1.1875 inch
Minimum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 1.1869 inch
Maximum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 1.1865 inch
Minimum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 1.1859 inch
Minimum Recommended Housing Bore (Slip Fit ISO H7) - 1.6875 inch
Maximum Recommended Housing Bore (Slip Fit ISO H7) - 1.6885 inch
Mean Fit Recommended Housing Bore (Slip Fit ISO H7) - 0.0007L inch
Minimum Recommended Housing Bore (Press Fit ISO H7) - 1.6862 inch
Maximum Recommended Housing Bore (Press Fit ISO H7) - 1.6872 inch
Mean Fit Recommended Housing Bore (Press Fit ISO H7) - 0.0005T inch
MS 51961 Suffix ** - (-13)
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.118841104 kg
Other salient points to be noted :
• The part numbers of matching inner rings are the same as the corresponding bearing numbers, except the prefix SJ is replaced by the prefix IR. Alternate inner rings with different bores are available for several bearings. Alternate inner rings carry suffix -C or -D
• Example: Matching inner rings for bearing SJ 7315 (1 /34” x 2 5/8” x 1 1/4”):
a) IR 7315 (1 7/16”ID x 1 3/4”OD x 1 1/4”W) or,
b) IR 7315 C (1 1/2”ID x 1 3/4”OD x 1 1/4”W)
• Inner rings must be ordered separately
** The bearings meet Military Standard MS 51961

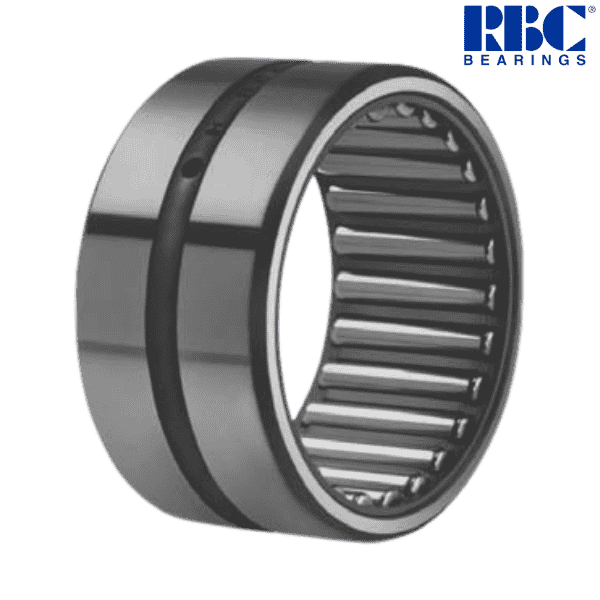

♦ ♦ Images are for representation purposes only
