Description
Brand - RBC
Item Number - SJ 7214* RBC
Category - Pitchlign Precision Ground Heavy Duty Needle Roller Bearings

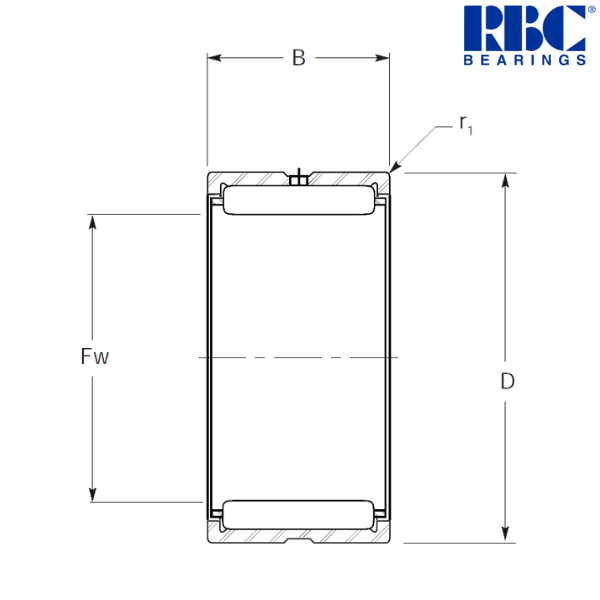

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (Fw) - 1.125 inch
Minimum Inside Diameter (Fw) - 1.1259 inch
Maximum Inside Diameter (Fw) - 1.1268 inch
Maximum Outside Diameter (D) - 1.625 inch
Minimum Outside Diameter (D) - 1.6245 inch
Width (B) - 1 inch
Maximum Housing Fillet (r1) - 0.04 inch
Approximate Weight - 0.212 lbs
Housing Shoulder Diameter - 1.375 inch
Dynamic Capacity (C) - 7600 lbf
Static Capacity (C0) - 13200 lbf
Limit Speed - 12000 rpm
Maximum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 1.125 inch
Minimum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 1.1245 inch
Maximum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 1.1242 inch
Minimum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 1.1237 inch
Minimum Recommended Housing Bore (Slip Fit ISO H7) - 1.625 inch
Maximum Recommended Housing Bore (Slip Fit ISO H7) - 1.626 inch
Mean Fit Recommended Housing Bore (Slip Fit ISO H7) - 0.0007L inch
Minimum Recommended Housing Bore (Press Fit ISO H7) - 1.6237 inch
Maximum Recommended Housing Bore (Press Fit ISO H7) - 1.6247 inch
Mean Fit Recommended Housing Bore (Press Fit ISO H7) - 0.0005T. inch
MS 51961 Suffix ** - (-11)
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.096161504 kg
Other salient points to be noted :
• The part numbers of matching inner rings are the same as the corresponding bearing numbers, except the prefix SJ is replaced by the prefix IR. Alternate inner rings with different bores are available for several bearings. Alternate inner rings carry suffix -C or -D
• Example: Matching inner rings for bearing SJ 7315 (1 /34” x 2 5/8” x 1 1/4”):
a) IR 7315 (1 7/16”ID x 1 3/4”OD x 1 1/4”W) or,
b) IR 7315 C (1 1/2”ID x 1 3/4”OD x 1 1/4”W)
• Inner rings must be ordered separately
* These bearings have a radius at both ends of the outer ring. All other outer rings are manufactured with a radius at one end and a break corner at the other.
** The bearings meet Military Standard MS 51961
♦ ♦ Images are for representation purposes only
