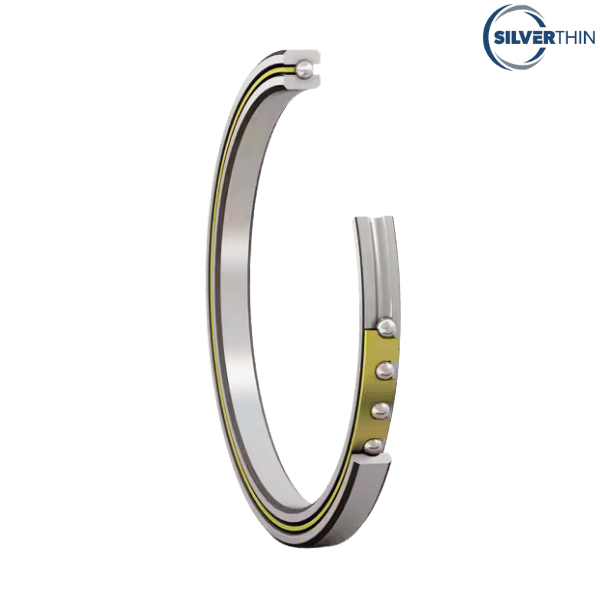

SG250CP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SG250CP0 SILVERTHIN
Category - Open Type Radial Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - Radial Contact (Type C)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 25 inch
Outside Diameter (D) - 27 inch
Width - 1 inch
Land Diameter (L1) - 25.742 inch
Land Diameter (L2) - 26.258 inch
Approximate Weight - 19.5 lbs
Static Radial Load - 42680 lbf
Dynamic Radial Load - 14595 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 8.844 kg

Description of Suffixes :
C - Radial Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 1/2'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SG250CPO
INA - CSCG250
NSK - NBC63525
RBC - KG250CP0*RBC
KAYDON - KG250CP0
SKF - FPCG2500
NTN - KRG220
FAG - L10WA2500
SSB - RG250CP0

♦ ♦ Images are for representation purposes only
