SG250CP0 RBC

Brand - RBC
Item Number - SG250CP0*RBC
Category - Radial Contact, C-Type Thin Section Ball Bearings

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 25 inch
Outside Diameter (D) - 27 inch
Width (W) - 1 inch
Land Diameter of Inner Ring (Li) - 25.75 inch
Land Diameter of Outer Ring (Lo) - 26.25 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.5 inch
Ball Quantity - 78 pcs.
Approximate Weight - 19.5 lbs
Radial Static Load - 42680 lbf
Radial Dynamic Load - 14591 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 635 mm
Outside Diameter (D) - 685.8 mm
Width (W) - 25.4 mm
Land Diameter of Inner Ring (Li) - 654.05 mm
Land Diameter of Outer Ring (Lo) - 666.75 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 8.845 kg
Radial Static Load - 189850 N
Radial Dynamic Load - 64900 N

Description of Suffixes and Prefixes :
S - No seals or shields

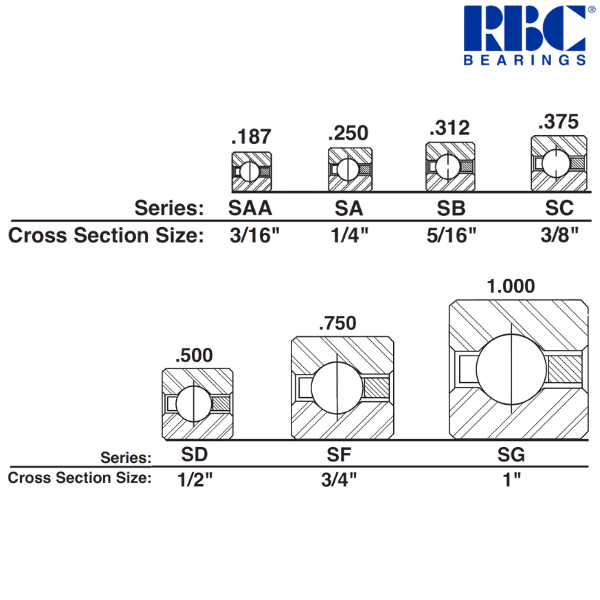

G - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.
