Description
Brand - SILVERTHIN
Item Number - SG250AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)
Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 25 inch
Outside Diameter (D) - 27 inch
Width - 1 inch
Land Diameter (L1) - 25.742 inch
Land Diameter (L2) - 26.258 inch
Land Diameter (L3) - 26.461 inch
Approximate Weight - 19.50 lbs
Static Radial Load - 49280 lbf
Dynamic Radial Load - 15240 lbf
Static Thrust Load - 142300 lbf
Dynamic Thrust Load - 40920 lbf
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 8.844 kg
Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1
Other salient points to be noted :
• Brass; one piece pocket separator 1/2'' balls
• Load capacities are not additive

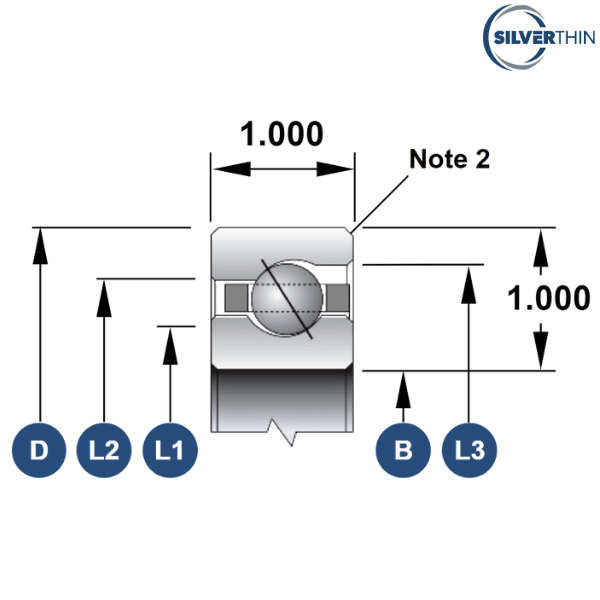

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''
Interchange :
SILVERTHIN - SG250ARO
INA - CSEG250
NSK - NBA63525
RBC - KG250AR0*RBC
KAYDON - KG250AR0
SKF - FPAG2500
NTN - KYG220
FAG - L15WA2500
SSB - RG250AR0
♦ ♦ Images are for representation purposes only
