SG200XP0 RBC

Brand - RBC
Item Number - SG200XP0*RBC

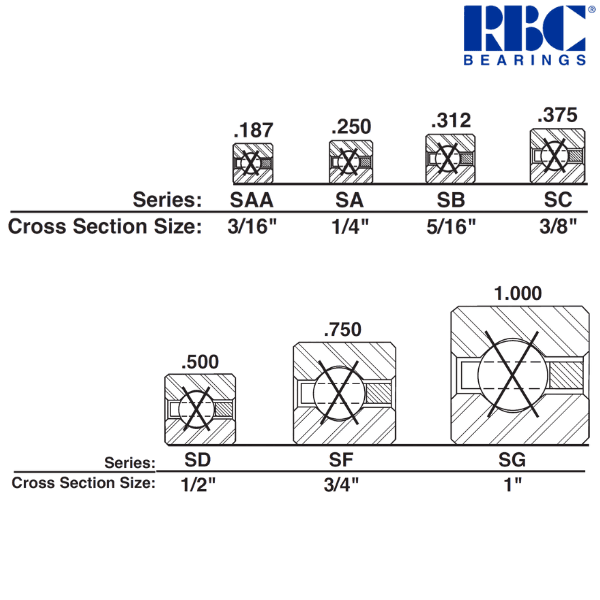

Category - 4-Point Contact, X-Type Thin Section Ball Bearings

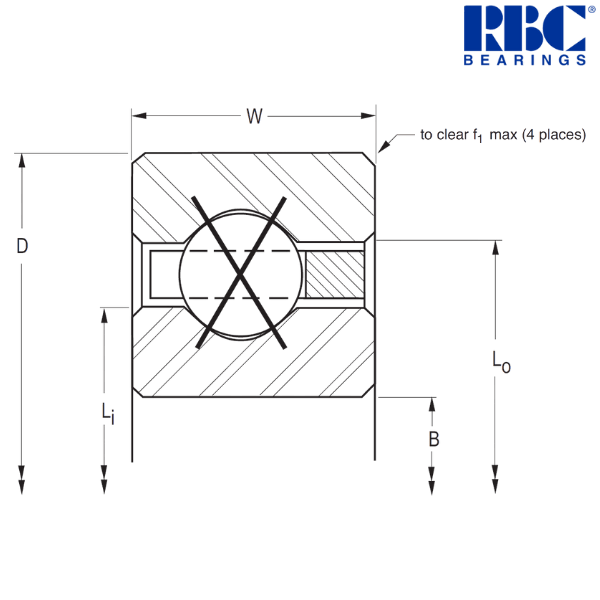

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 20 inch
Outside Diameter (D) - 22 inch
Width (W) - 1 inch
Land Diameter of Inner Ring (Li) - 20.75 inch
Land Diameter of Outer Ring (Lo) - 21.25 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.5 inch
Ball Quantity - 63 pcs.
Approximate Weight - 15.8 lbs
Radial Static Load - 34470 lbf
Radial Dynamic Load - 17293 lbf
Thrust Static Load - 86180 lbf
Thrust Dynamic Load - 29300 lbf
Moment Static Load - 362000 lbf-in
Moment Dynamic Load - 136238 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 508 mm
Outside Diameter (D) - 558.8 mm
Width (W) - 25.4 mm
Land Diameter of Inner Ring (Li) - 527.05 mm
Land Diameter of Outer Ring (Lo) - 539.75 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 7.167 kg
Radial Static Load - 153330 N
Radial Dynamic Load - 76920 N
Thrust Static Load - 383350 N
Thrust Dynamic Load - 130330 N
Moment Static Load - 40900 Nm
Moment Dynamic Load - 15390 Nm

Description of Suffixes and Prefixes :
S - No seals or shields
G - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
