SG200CP0 RBC

Brand - RBC
Item Number - SG200CP0*RBC
Category - Radial Contact, C-Type Thin Section Ball Bearings

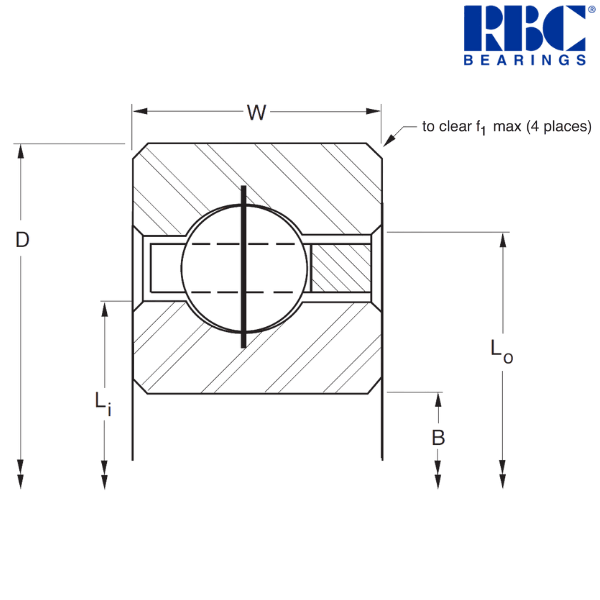

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 20 inch
Outside Diameter (D) - 22 inch
Width (W) - 1 inch
Land Diameter of Inner Ring (Li) - 20.75 inch
Land Diameter of Outer Ring (Lo) - 21.25 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.5 inch
Ball Quantity - 63 pcs.
Approximate Weight - 15.8 lbs
Radial Static Load - 34470 lbf
Radial Dynamic Load - 13044 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 508 mm
Outside Diameter (D) - 558.8 mm
Width (W) - 25.4 mm
Land Diameter of Inner Ring (Li) - 527.05 mm
Land Diameter of Outer Ring (Lo) - 539.75 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 7.167 kg
Radial Static Load - 153330 N
Radial Dynamic Load - 58020 N

Description of Suffixes and Prefixes :
S - No seals or shields
G - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
