SG180CP0 RBC

Brand - RBC
Item Number - SG180CP0*RBC
Category - Radial Contact, C-Type Thin Section Ball Bearings

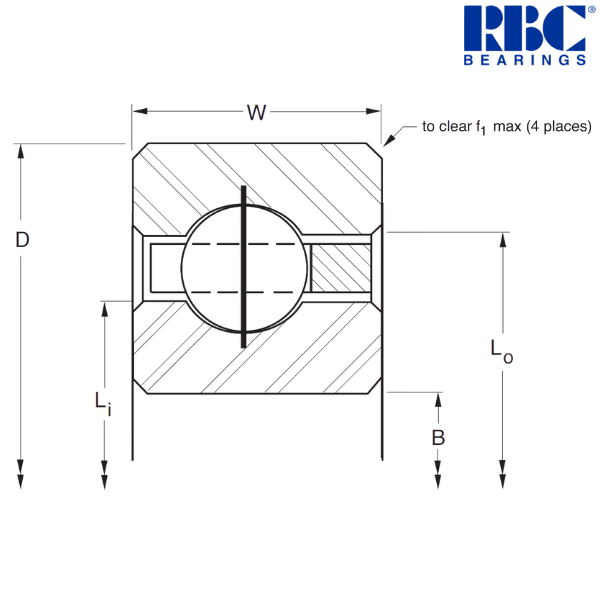

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 18 inch
Outside Diameter (D) - 20 inch
Width (W) - 1 inch
Land Diameter of Inner Ring (Li) - 18.75 inch
Land Diameter of Outer Ring (Lo) - 19.25 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.5 inch
Ball Quantity - 57 pcs.
Approximate Weight - 13.7 lbs
Radial Static Load - 31190 lbf
Radial Dynamic Load - 12367 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 457.2 mm
Outside Diameter (D) - 508 mm
Width (W) - 25.4 mm
Land Diameter of Inner Ring (Li) - 476.25 mm
Land Diameter of Outer Ring (Lo) - 488.95 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 6.214 kg
Radial Static Load - 138740 N
Radial Dynamic Load - 55010 N

Description of Suffixes and Prefixes :
S - No seals or shields
G - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
