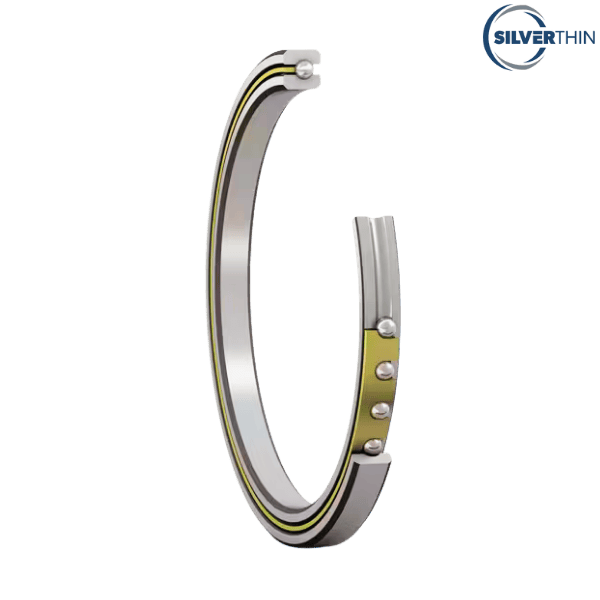

SG160CP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SG160CP0 SILVERTHIN
Category - Open Type Radial Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - Radial Contact (Type C)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 16 inch
Outside Diameter (D) - 18 inch
Width - 1 inch
Land Diameter (L1) - 16.742 inch
Land Diameter (L2) - 17.258 inch
Approximate Weight - 12.3 lbs
Static Radial Load - 27910 lbf
Dynamic Radial Load - 11650 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 5.578 kg

Description of Suffixes :
C - Radial Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 1/2'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SG160CPO
INA - CSCG160
NSK - NBC40625
RBC - KG160CP0*RBC
KAYDON - KG160CP0
SKF - FPCG1600
NTN - KRG160
FAG - L10WA1600
SSB - RG160CP0
