SG120AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SG120AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 12 inch
Outside Diameter (D) - 14 inch
Width - 1 inch
Land Diameter (L1) - 12.742 inch
Land Diameter (L2) - 13.258 inch
Land Diameter (L3) - 13.481 inch
Approximate Weight - 9.30 lbs
Static Radial Load - 24640 lbf
Dynamic Radial Load - 10480 lbf
Static Thrust Load - 71140 lbf
Dynamic Thrust Load - 25780 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 4.218 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 1/2'' balls
• Load capacities are not additive

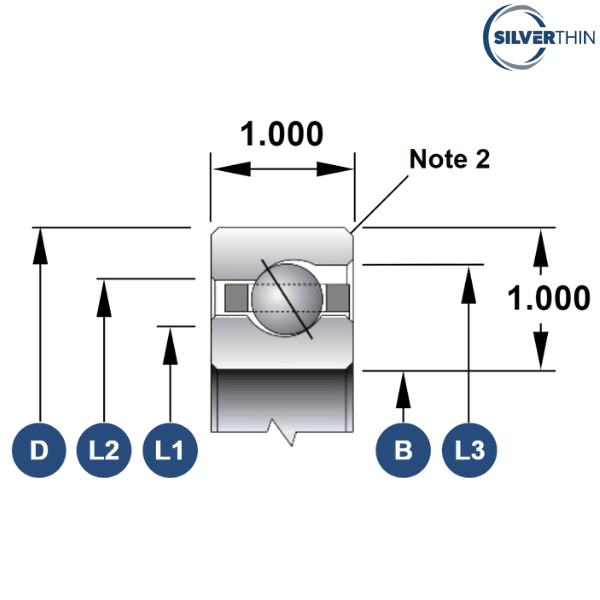

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SG120ARO
INA - CSEG120
NSK - NBA30425
RBC - KG120AR0*RBC
KAYDON - KG120AR0
SKF - FPAG1200
NTN - KYG120
FAG - L15WA1200
SSB - RG120AR0

♦ ♦ Images are for representation purposes only
