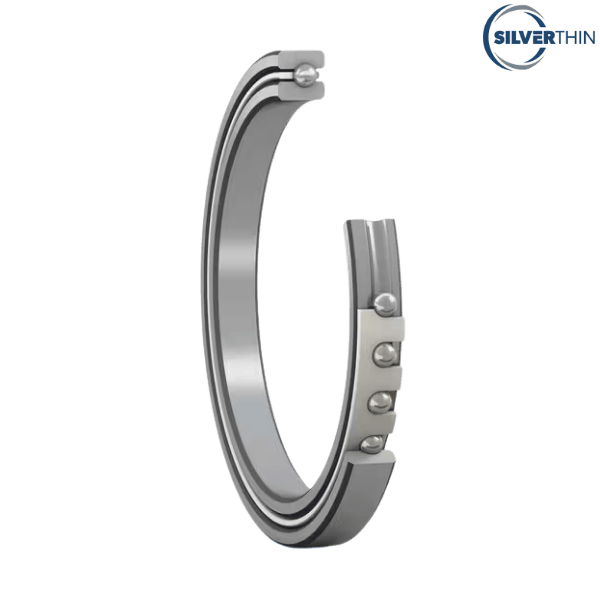

SG100XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SG100XP0 SILVERTHIN
Category - Open Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 10 inch
Outside Diameter (D) - 12 inch
Width - 1 inch
Land Diameter (L1) - 10.742 inch
Land Diameter (L2) - 11.258 inch
Approximate Weight - 7.90 lbs
Static Radial Load - 18060 lbf
Dynamic Radial Load - 12145 lbf
Static Thrust Load - 45140 lbf
Dynamic Thrust Load - 19040 lbf
Static Moment Load - 99320 in-lbs
Dynamic Moment Load - 50125 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 7.90 lbs

Description of Suffixes :
X - 4 Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 1/2'' balls
• Load capacities are not additive

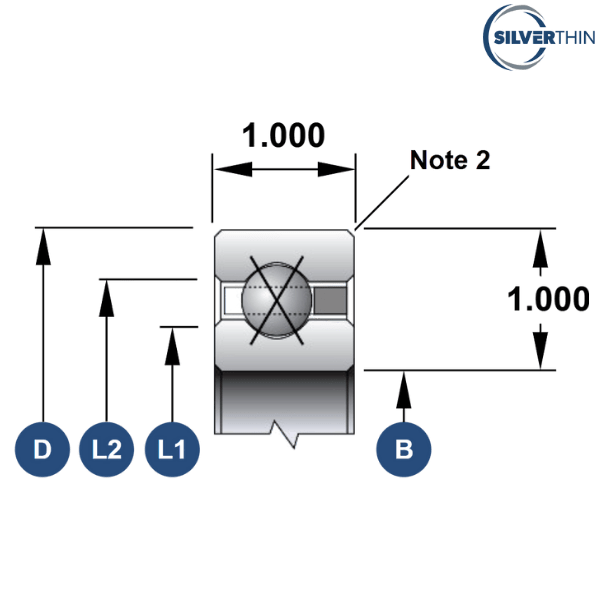

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SG100XPO
INA - CSXG100
NSK - NBX25425
RBC - KG100XP0*RBC
KAYDON - KG100XP0
SKF - FPXG1000
NTN - KXG100
FAG - L18WA1000
SSB - RG100XP0

♦ ♦ Images are for representation purposes only
