Description
Brand - RBC
Item Number - SG100XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

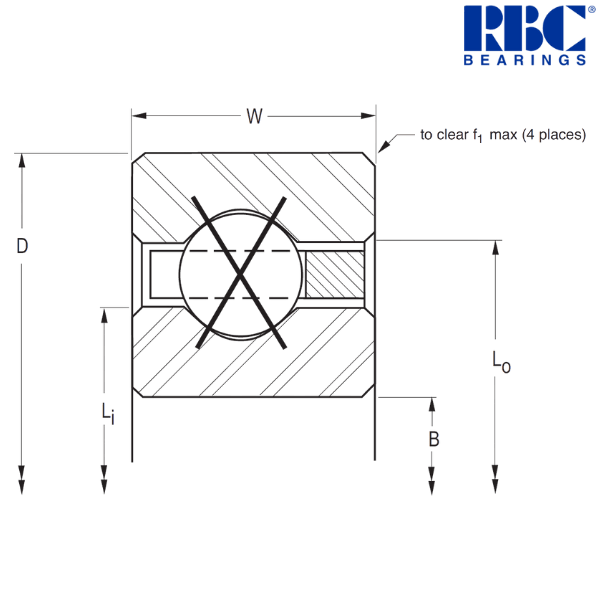

Imperial :
-----------------------------------------
Bore Diameter (B) inch - 10
Outside Diameter (D) inch - 12
Width (W) inch - 1
Land Diameter of Inner Ring (Li) inch - 10.75
Land Diameter of Outer Ring (Lo) inch - 11.25
Housing Fillet (f1) inch - 0.08
Ball Diameter (inch) - 0.5
Ball Quantity - 33
Approximate Weight (lbs) - 7.9
Radial Static Load (lbf) - 18060
Radial Dynamic Load (lbf) - 12147
Thrust Static Load (lbf) - 45140
Thrust Dynamic Load (lbf) - 21790
Moment Static Load (lbf-in) - 99320
Moment Dynamic Load (lbf-in) - 50124
Metric :
-----------------------------------------
Bore Diameter (B) mm - 254
Outside Diameter (D) mm - 304.8
Width (W) mm - 25.4
Land Diameter of Inner Ring (Li) mm - 273.05
Land Diameter of Outer Ring (Lo) mm - 285.75
Housing Fillet (f1) mm - 2.03
Approximate Weight (kg) - 3.583
Radial Static Load (N) - 80330
Radial Dynamic Load (N) - 54030
Thrust Static Load (N) - 200790
Thrust Dynamic Load (N) - 96930
Moment Static Load (Nm) - 11220
Moment Dynamic Load (Nm) - 5660

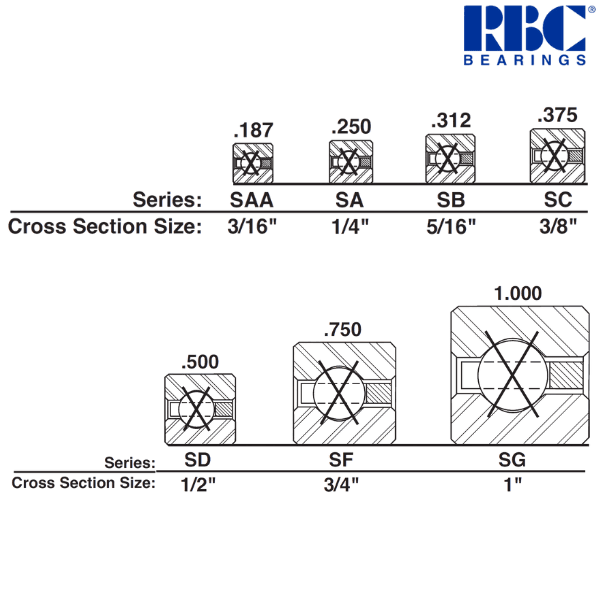

Description of Suffixes and Prefixes :
-----------------------------------------
S - No seals or shields
G - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F
Notes about this Bearing :
-----------------------------------------
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
* The alphanumeric identification system is used under license.
** Images are for representation purposes only
