SG100AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SG100AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

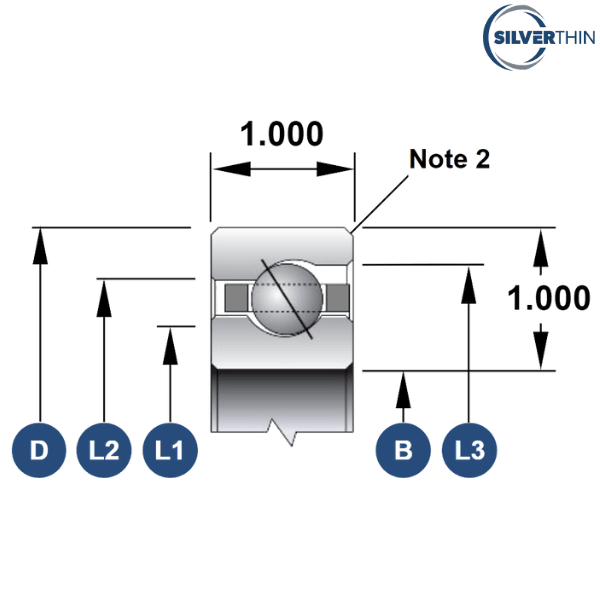

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 10 inch
Outside Diameter (D) - 12 inch
Width - 1 inch
Land Diameter (L1) - 10.742 inch
Land Diameter (L2) - 11.258 inch
Land Diameter (L3) - 11.483 inch
Approximate Weight - 7.90 lbs
Static Radial Load - 20850 lbf
Dynamic Radial Load - 9560 lbf
Static Thrust Load - 60190 lbf
Dynamic Thrust Load - 23060 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 3.583 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 1/2'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SG100ARO
INA - CSEG100
NSK - NBA25425
RBC - KG100AR0*RBC
KAYDON - KG100AR0
SKF - FPAG1000
NTN - KYG100
FAG - L15WA1000
SSB - RG100AR0

♦ ♦ Images are for representation purposes only
