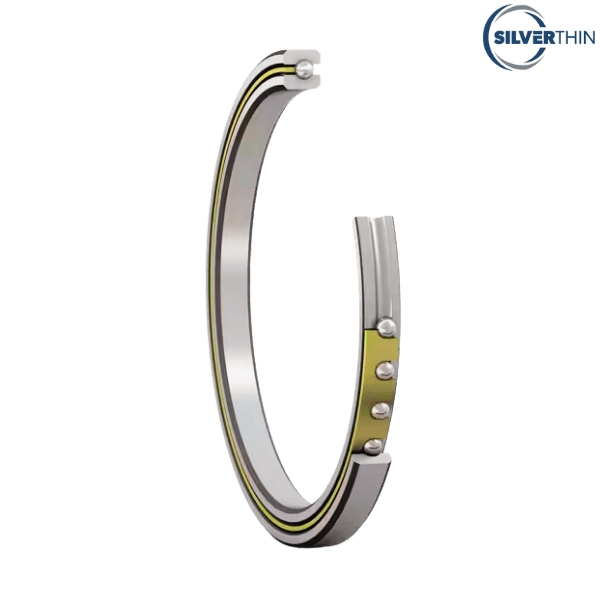

SG075CP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SG075CP0 SILVERTHIN
Category - Open Type Radial Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - Radial Contact (Type C)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7.5 inch
Outside Diameter (D) - 9.5 inch
Width - 1 inch
Land Diameter (L1) - 8.242 inch
Land Diameter (L2) - 8.758 inch
Approximate Weight - 6.1 lbs
Static Radial Load - 13680 lbf
Dynamic Radial Load - 7910 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 2.766 kg

Description of Suffixes :
C - Radial Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 1/2'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SG075CPO
INA - CSCG075
NSK - NBC19025
RBC - KG075CP0*RBC
KAYDON - KG075CP0
SKF - FPCG708
NTN - KRG075
FAG - L10WA708
SSB - RG075CP0

♦ ♦ Images are for representation purposes only
