SG065AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SG065AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6.5 inch
Outside Diameter (D) - 8.5 inch
Width - 1 inch
Land Diameter (L1) - 7.242 inch
Land Diameter (L2) - 7.758 inch
Land Diameter (L3) - 7.987 inch
Approximate Weight - 5.40 lbs
Static Radial Load - 14220 lbf
Dynamic Radial Load - 7760 lbf
Static Thrust Load - 41040 lbf
Dynamic Thrust Load - 17870 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 2.449 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 1/2'' balls
• Load capacities are not additive

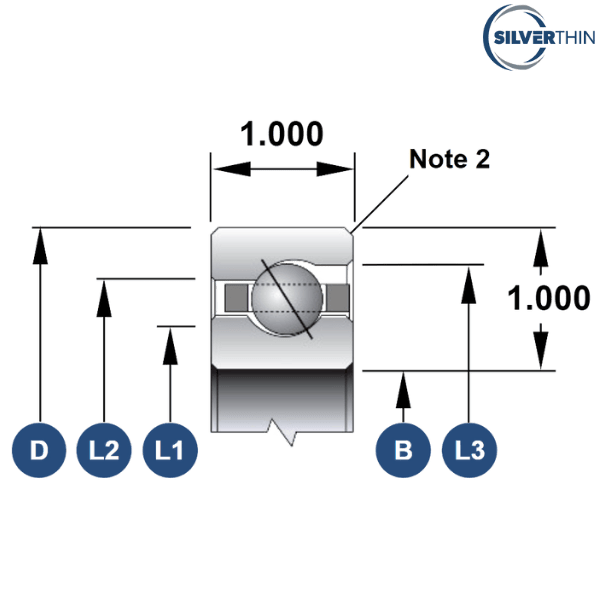

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SG065ARO
INA - CSEG065
NSK - NBA16525
RBC - KG065AR0*RBC
KAYDON - KG065AR0
SKF - FPAG608
NTN - KYG065
FAG - L15WA608
SSB - RG065AR0

♦ ♦ Images are for representation purposes only
