SG060CP0 RBC

Brand - RBC
Item Number - SG060CP0*RBC
Category - Radial Contact, C-Type Thin Section Ball Bearings

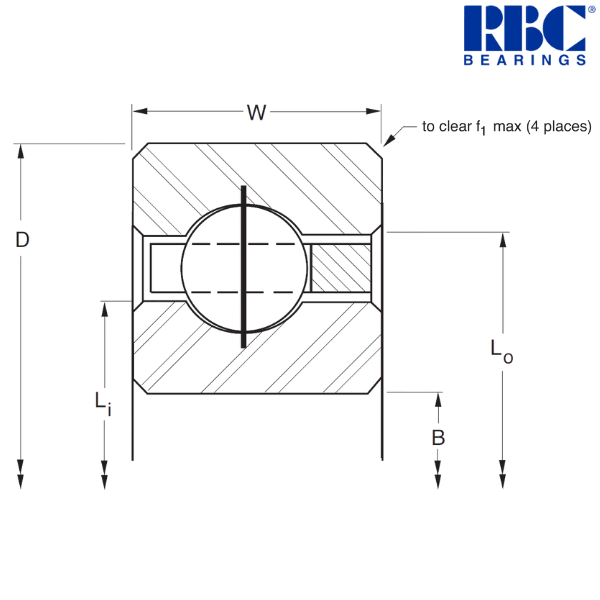

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6 inch
Outside Diameter (D) - 8 inch
Width (W) - 1 inch
Land Diameter of Inner Ring (Li) - 6.75 inch
Land Diameter of Outer Ring (Lo) - 7.25 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.5 inch
Ball Quantity - 21 pcs.
Approximate Weight - 5.1 lbs
Radial Static Load - 11490 lbf
Radial Dynamic Load - 8390 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 152.4 mm
Outside Diameter (D) - 203.2 mm
Width (W) - 25.4 mm
Land Diameter of Inner Ring (Li) - 171.45 mm
Land Diameter of Outer Ring (Lo) - 184.15 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 2.313 kg
Radial Static Load - 51110 N
Radial Dynamic Load - 37320 N

Description of Suffixes and Prefixes :
S - No seals or shields

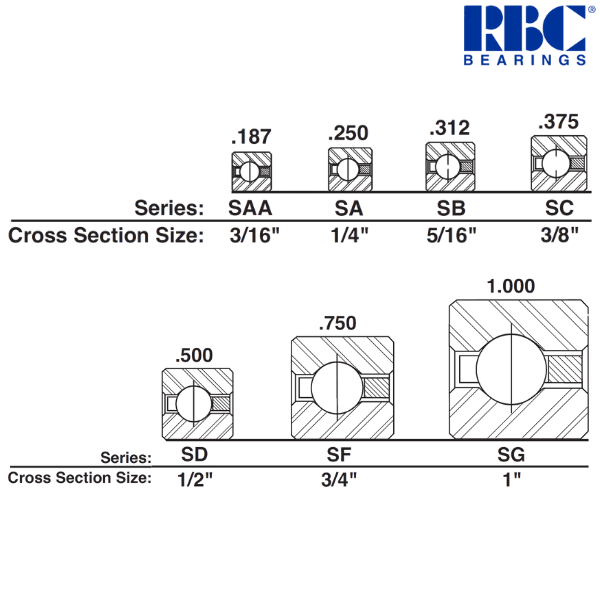

G - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
