SG047AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SG047AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

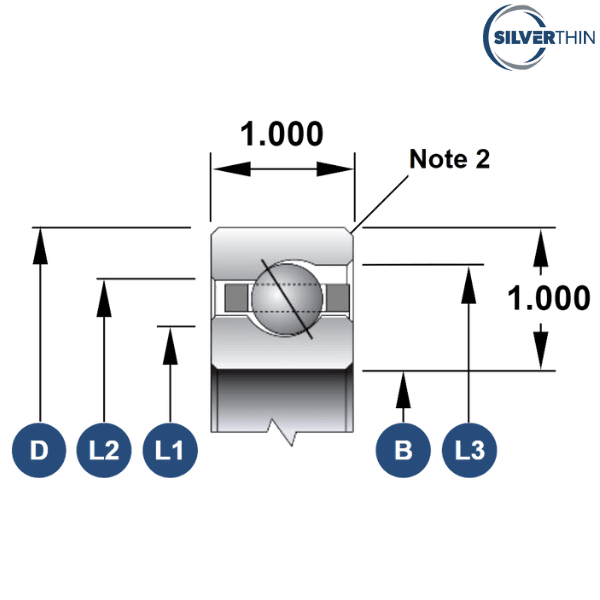

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.75 inch
Outside Diameter (D) - 6.75 inch
Width - 1 inch
Land Diameter (L1) - 5.492 inch
Land Diameter (L2) - 6.008 inch
Land Diameter (L3) - 6.239 inch
Approximate Weight - 4.10 lbs
Static Radial Load - 10900 lbf
Dynamic Radial Load - 6745 lbf
Static Thrust Load - 31460 lbf
Dynamic Thrust Load - 14970 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.859 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 1/2'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SG047ARO
INA - CSEG047
NSK - NBA12025
RBC - KG047AR0*RBC
KAYDON - KG047AR0
SKF - FPAG412
NTN - KYG047
FAG - L15WA408
SSB - RG047AR0

♦ ♦ Images are for representation purposes only
