SG045AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SG045AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

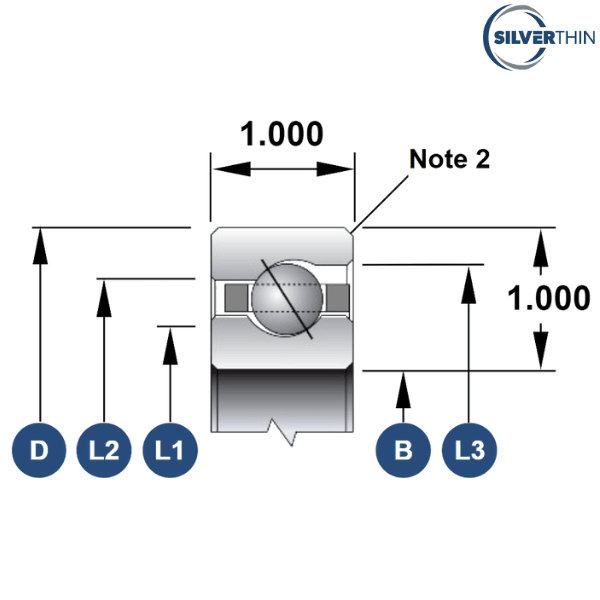

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.5 inch
Outside Diameter (D) - 6.5 inch
Width - 1 inch
Land Diameter (L1) - 5.242 inch
Land Diameter (L2) - 5.758 inch
Land Diameter (L3) - 5.989 inch
Approximate Weight - 4.00 lbs
Static Radial Load - 10430 lbf
Dynamic Radial Load - 6560 lbf
Static Thrust Load - 30100 lbf
Dynamic Thrust Load - 14530 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.814 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 1/2'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.080'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SG045ARO
INA - CSEG045
NSK - NBA11425
RBC - KG045AR0*RBC
KAYDON - KG045AR0
SKF - FPAG408
NTN - KYG045
FAG - L15WA400
SSB - RG045AR0

♦ ♦ Images are for representation purposes only
