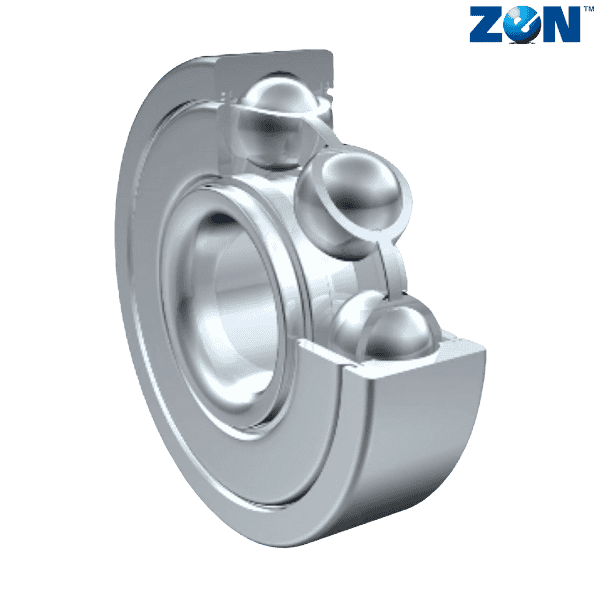

SFR 6-2Z ZEN

Brand - ZEN
Item Number - SFR 6-2Z ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - flanged
Type - Metal shields with Stainless Steel

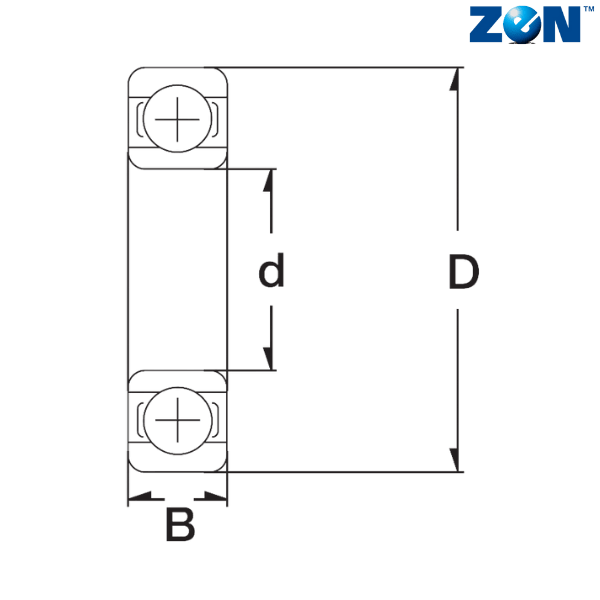

Inner Diameter (d) mm - 9.525
Outer Diameter (D) mm - 22.225
Width (mm) - 7.142
Inner Diameter (d) inch - 0.3750
Outer Diameter (D) inch - 0.8750
Width (inch) - 0.2812
Dynamic Load Rating (C) N (only 100 Cr6) - 3332
Static Load Rating (C) N (only 100 Cr6) - 1422
Limiting Speed x1000rpm (Grease) - 32.0
Limiting Speed x1000rpm (Oil) - 38.0
Approximate Weight (g) - 12
Compatible Ball Bearing (Rubber Seals with Chrome Steel) - FR 6-2RS
Compatible Ball Bearing (Rubber Seals with Stainless Steel) - SFR 6-2RS
Compatible Ball Bearing (Metal shields with Chrome Steel) - FR 6-2Z

Notes :
FR - Inch with Flange
2Z - Metal Shields

** Images are for representation purposes only
