SFR 2A ZEN

Brand - ZEN
Item Number - SFR 2A ZEN
Category - Ball Bearing (Miniature Inch Series)
Bearing Type - flanged
Type - Open Type with Stainless Steel

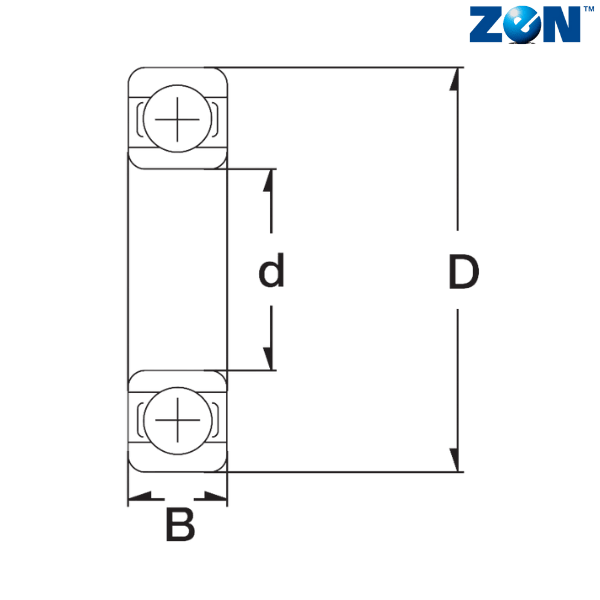

Inner Diameter (d) mm - 3.175
Outer Diameter (D) mm - 12.700
Width (mm) - 4.366
Inner Diameter (d) inch - 0.1250
Outer Diameter (D) inch - 0.5000
Width (inch) - 0.1719
Dynamic Load Rating (C) N (only 100 Cr6) - 640
Static Load Rating (C) N (only 100 Cr6) - 227
Limiting Speed x1000rpm (Grease) - 53.0
Limiting Speed x1000rpm (Oil) - 63.0
Approximate Weight (g) - Less than 3 Grams
Compatible Ball Bearing (Metal shields with Chrome Steel) - FR 2A-2Z
Compatible Ball Bearing (Metal shields with Stainless Steel) - SFR 2A-2Z
Compatible Ball Bearing (Rubber Seals with Chrome Steel) - FR 2A-2RS
Compatible Ball Bearing (Rubber Seals with Stainless Steel) - SFR 2A -2RS
Compatible Ball Bearing (Open Type with Chrome Steel) - FR 2A

Notes :
FR - Inch with Flange

** Images are for representation purposes only
