Description
Brand - ZEN
Item Number - SFL212 ZEN
Category - Stainless Steel Pillow Blocks (SFL)
Inner Diameter (d) mm - 60
Overall Length (a) mm - 250
Bolt Center to Center Length (e) mm - 202
i (mm) - 29
Overall Width (b) mm - 138.5
l (mm) - 48
g (mm) - 18
s (mm) - 23
Weight (kg) - 2.65
Bearing - SUC212

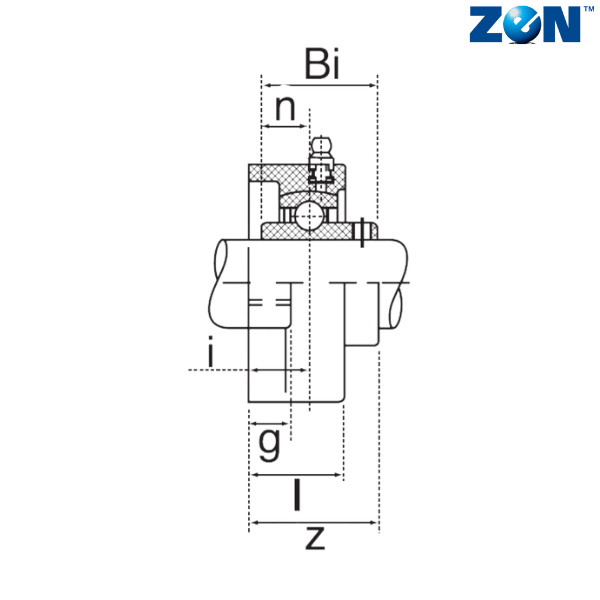

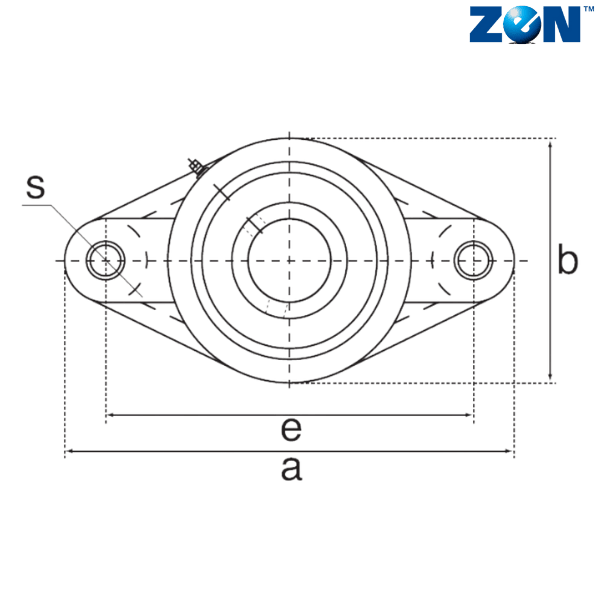

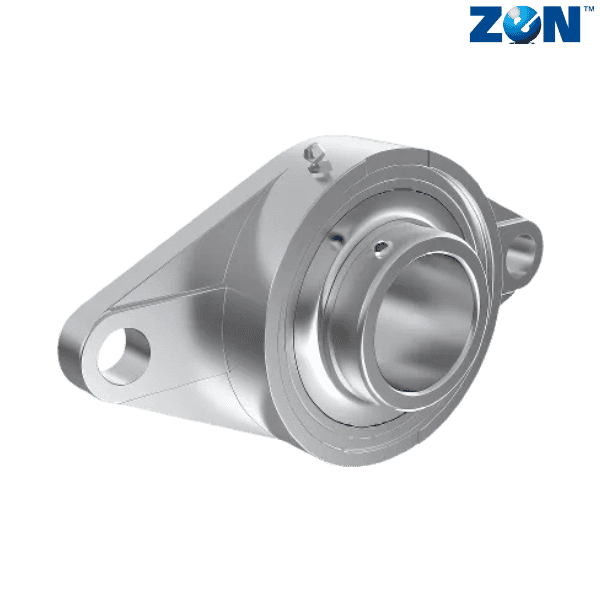

** Images are for representation purposes only
