Description
Brand - ZEN
Item Number - SFL211 ZEN

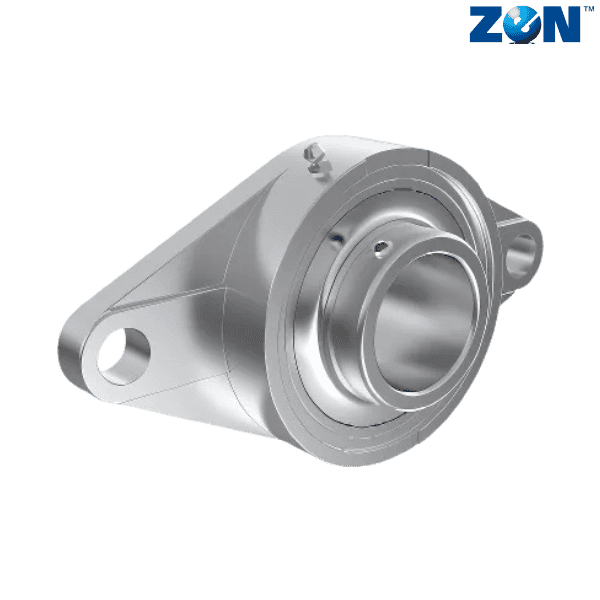

Category - Stainless Steel Pillow Blocks (SFL)
Inner Diameter (d) mm - 55

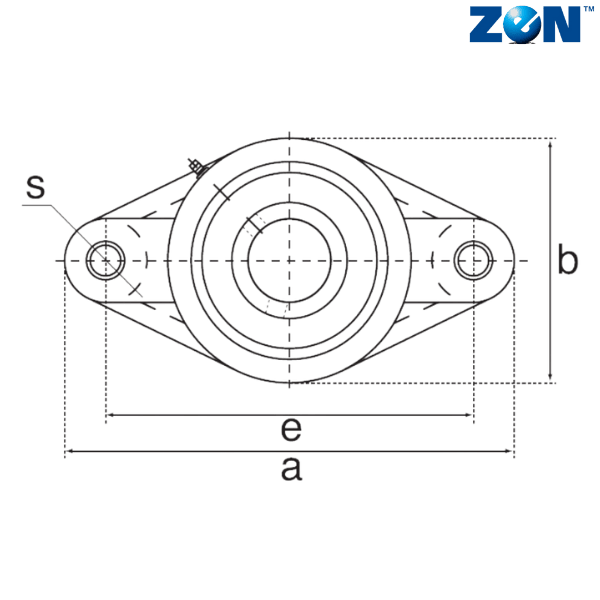

Overall Length (a) mm - 224
Bolt Center to Center Length (e) mm - 184

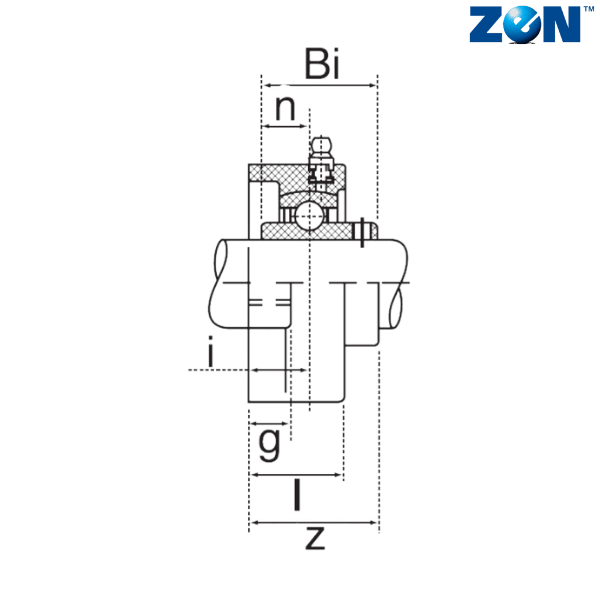

i (mm) - 25
Overall Width (b) mm - 130
l (mm) - 43
g (mm) - 18
s (mm) - 19
Weight (kg) - 2.2
Bearing - SUC211
** Images are for representation purposes only
