Description
Brand - ZEN
Item Number - SFL210 ZEN

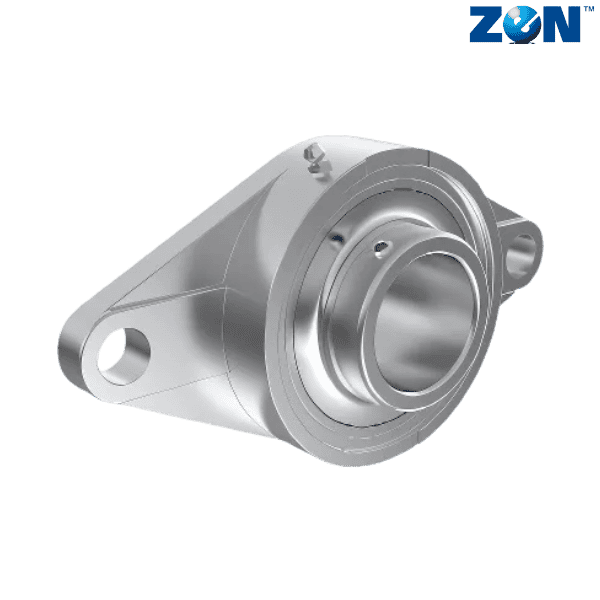

Category - Stainless Steel Pillow Blocks (SFL)

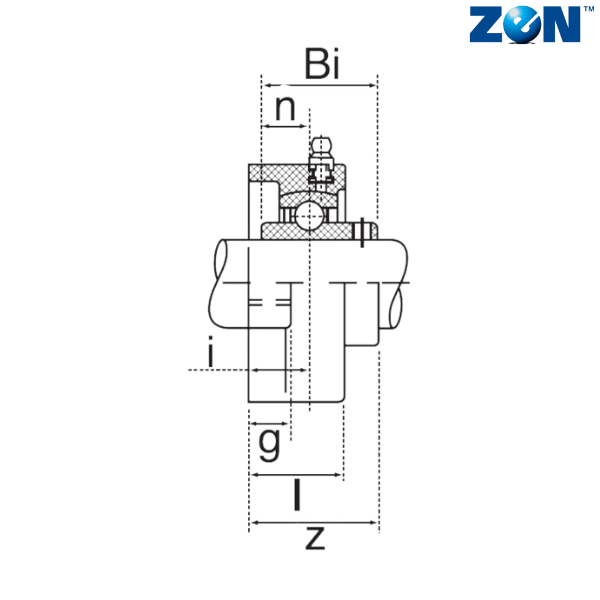

Inner Diameter (d) mm - 50

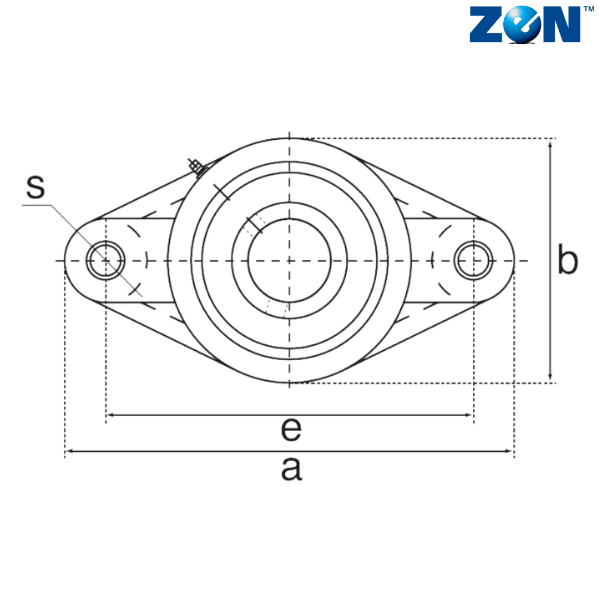

Overall Length (a) mm - 197
Bolt Center to Center Length (e) mm - 157
i (mm) - 22
Overall Width (b) mm - 114.6
l (mm) - 40
g (mm) - 15
s (mm) - 19
Weight (kg) - 1.36
Bearing - SUC210
** Images are for representation purposes only
