Description
Brand - ZEN
Item Number - SFL209 ZEN

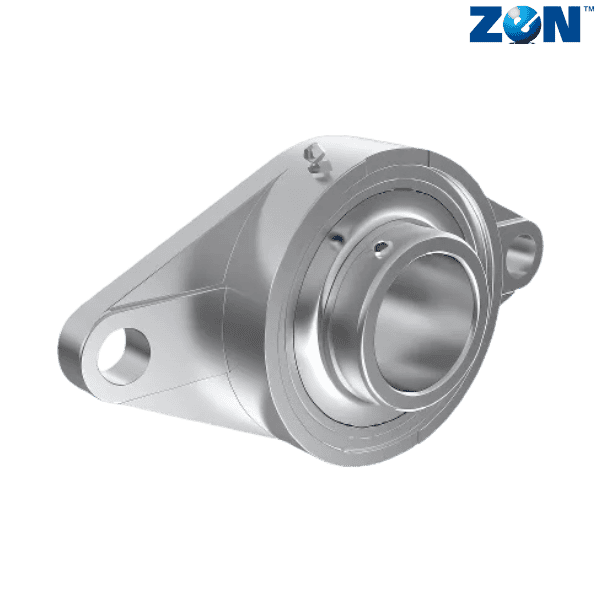

Category - Stainless Steel Pillow Blocks (SFL)
Inner Diameter (d) mm - 45

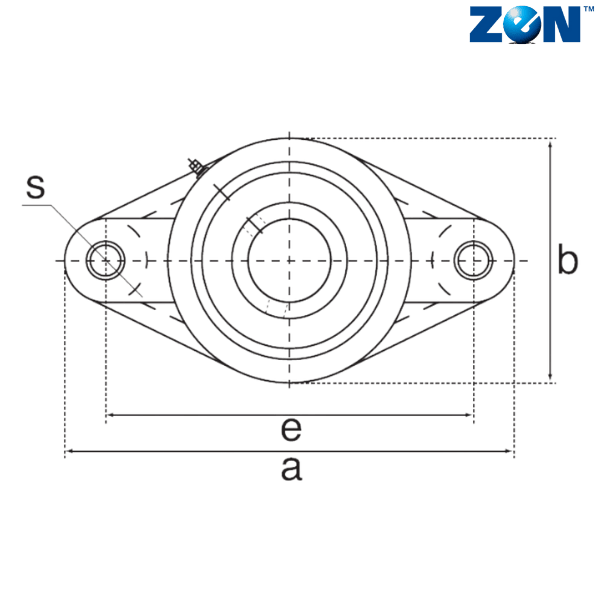

Overall Length (a) mm - 188
Bolt Center to Center Length (e) mm - 148

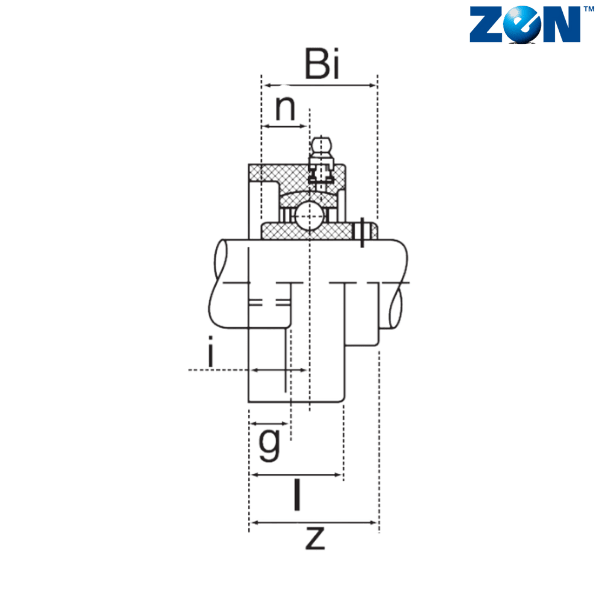

i (mm) - 22
Overall Width (b) mm - 108
l (mm) - 38
g (mm) - 15
s (mm) - 19
Weight (kg) - 1.16
Bearing - SUC209
** Images are for representation purposes only
