Description
Brand - ZEN
Item Number - SFL208 ZEN

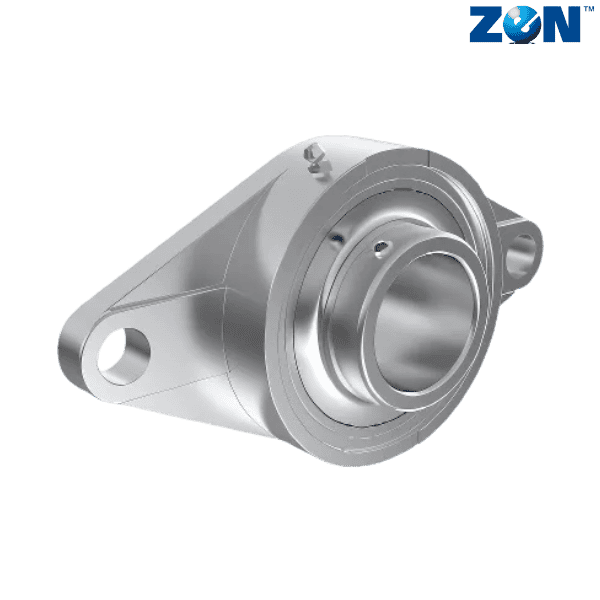

Category - Stainless Steel Pillow Blocks (SFL)
Inner Diameter (d) mm - 40

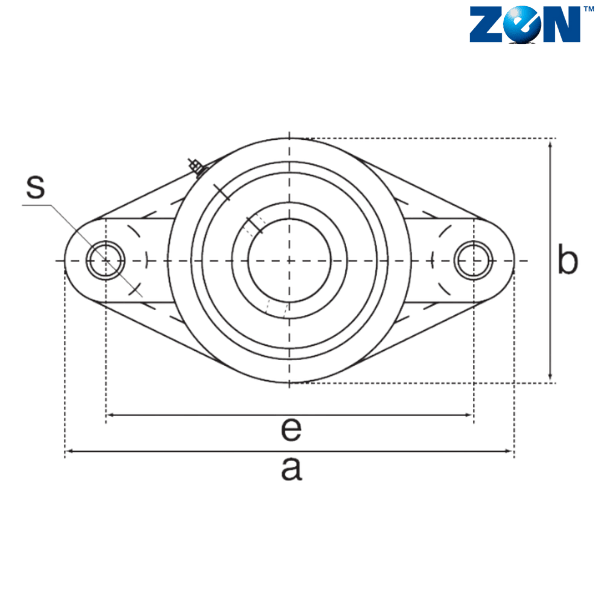

Overall Length (a) mm - 175
Bolt Center to Center Length (e) mm - 144

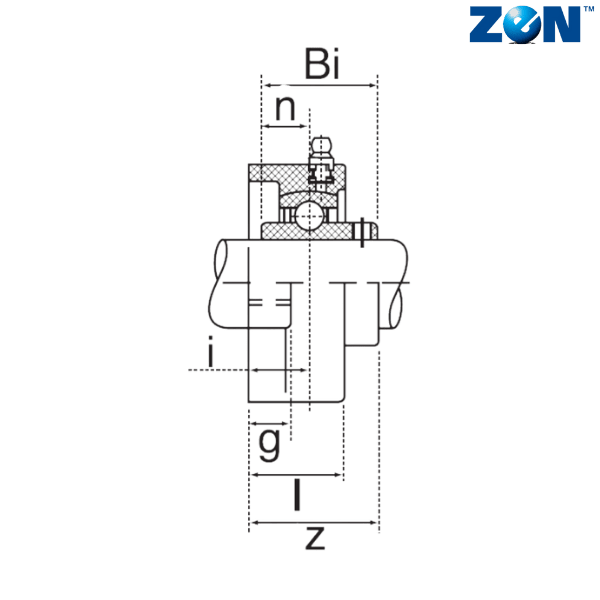

i (mm) - 21
Overall Width (b) mm - 100
l (mm) - 36
g (mm) - 14
s (mm) - 16
Weight (kg) - 0.99
Bearing - SUC208
** Images are for representation purposes only
