Description
Brand - ZEN
Item Number - SFL207 ZEN
Category - Stainless Steel Pillow Blocks (SFL)

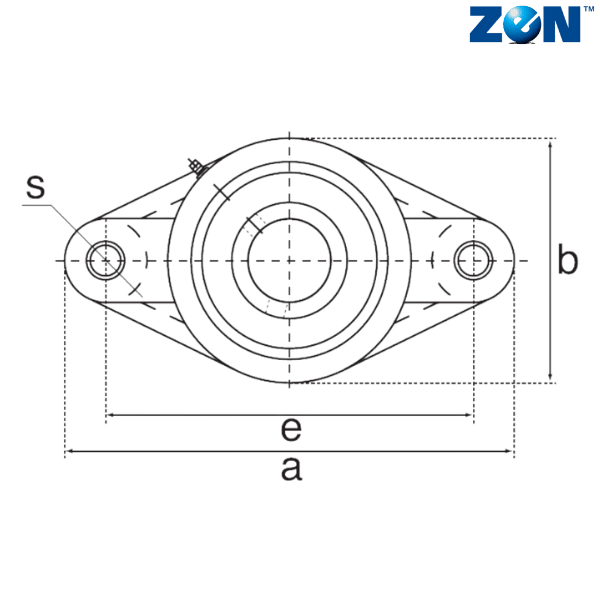

Inner Diameter (d) mm - 35
Overall Length (a) mm - 161
Bolt Center to Center Length (e) mm - 130

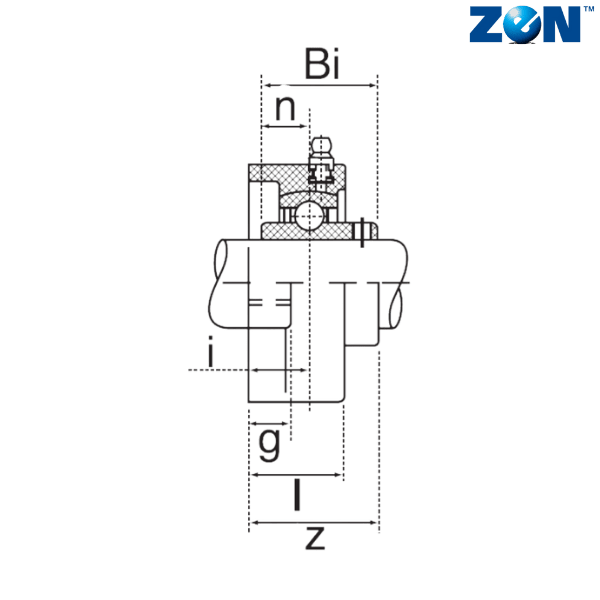

i (mm) - 19
Overall Width (b) mm - 90
l (mm) - 34
g (mm) - 14
s (mm) - 16
Weight (kg) - 0.74
Bearing - SUC207

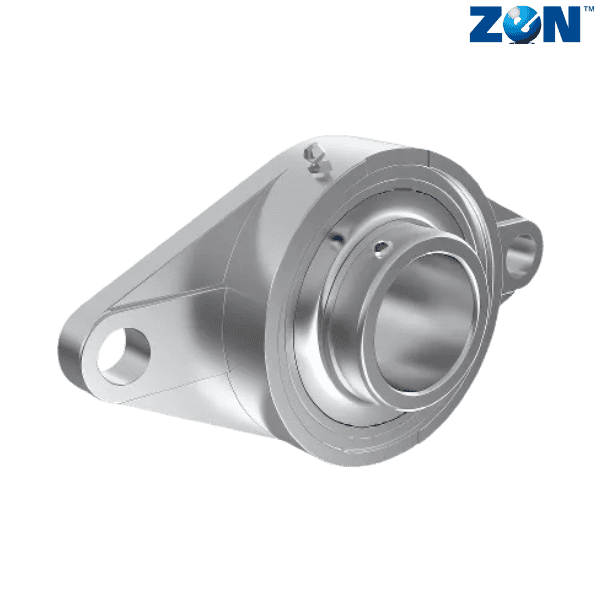

** Images are for representation purposes only
