Description
Brand - ZEN
Item Number - SFL206 ZEN
Category - Stainless Steel Pillow Blocks (SFL)

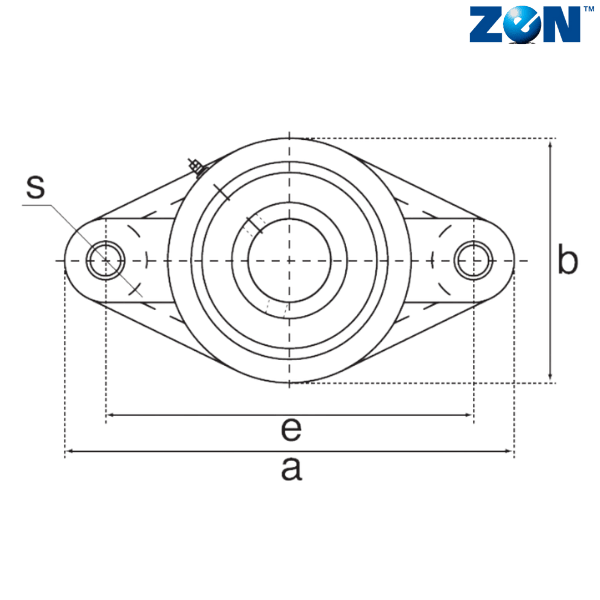

Inner Diameter (d) mm - 30
Overall Length (a) mm - 148
Bolt Center to Center Length (e) mm - 117

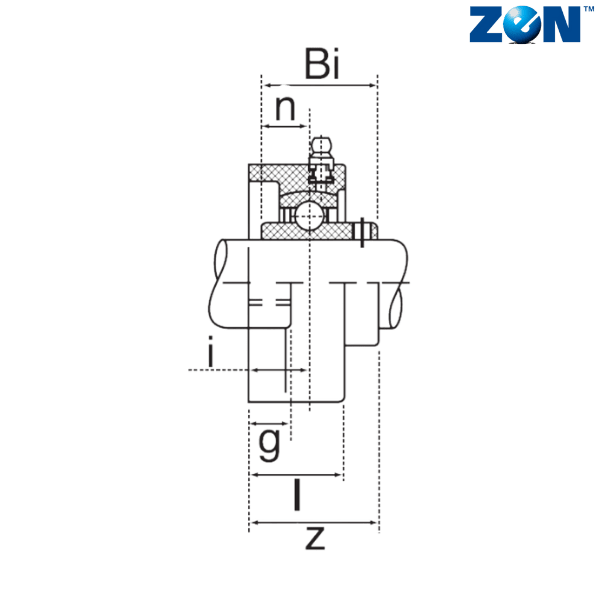

i (mm) - 18
Overall Width (b) mm - 80
l (mm) - 31
g (mm) - 13
s (mm) - 16
Weight (kg) - 0.58
Bearing - SUC206

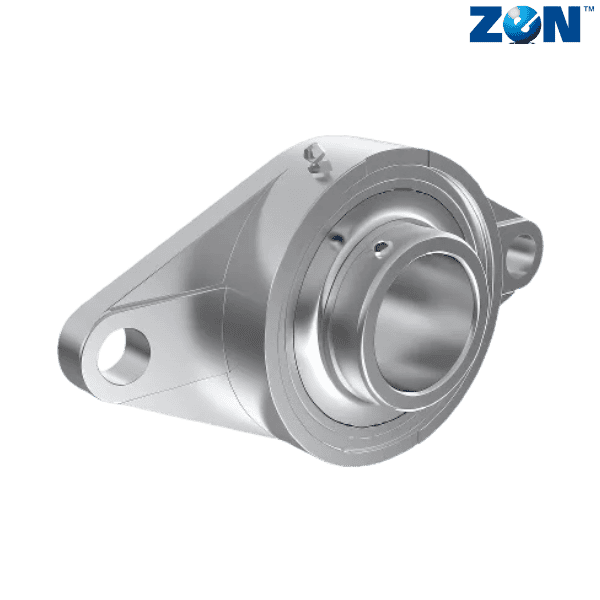

** Images are for representation purposes only
