Description
Brand - ZEN
Item Number - SFL205 ZEN
Category - Stainless Steel Pillow Blocks (SFL)
Inner Diameter (d) mm - 25

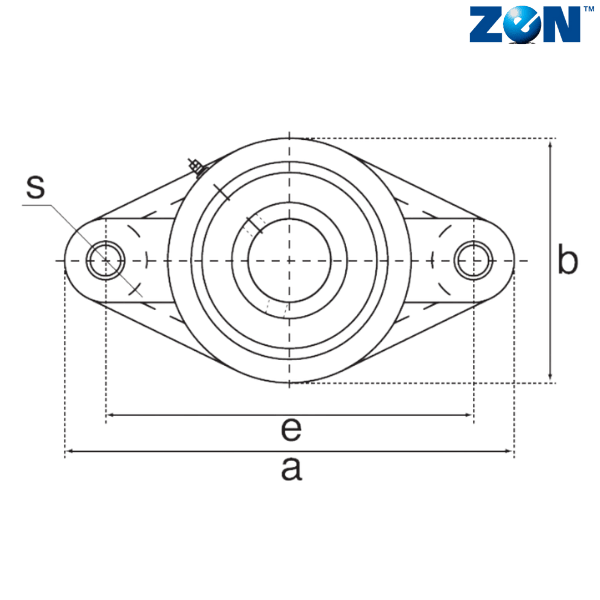

Overall Length (a) mm - 130
Bolt Center to Center Length (e) mm - 99

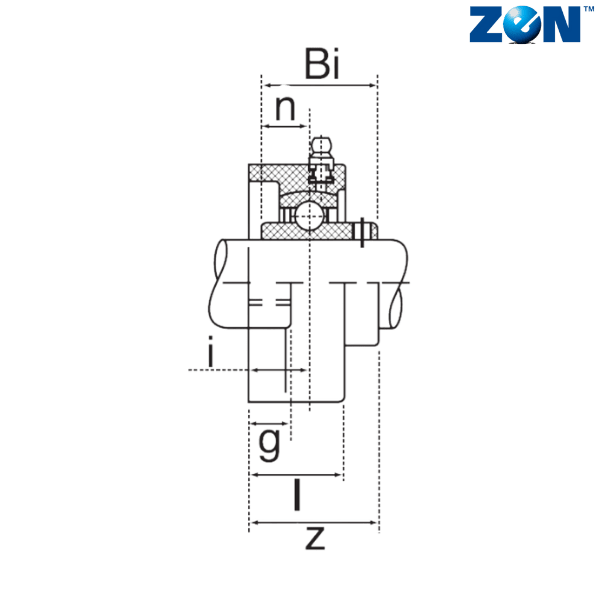

i (mm) - 16
Overall Width (b) mm - 68
l (mm) - 27
g (mm) - 13
s (mm) - 16
Weight (kg) - 0.44
Bearing - SUC205
** Images are for representation purposes only
