Description
Brand - ZEN
Item Number - SFL204 ZEN
Category - Stainless Steel Pillow Blocks (SFL)

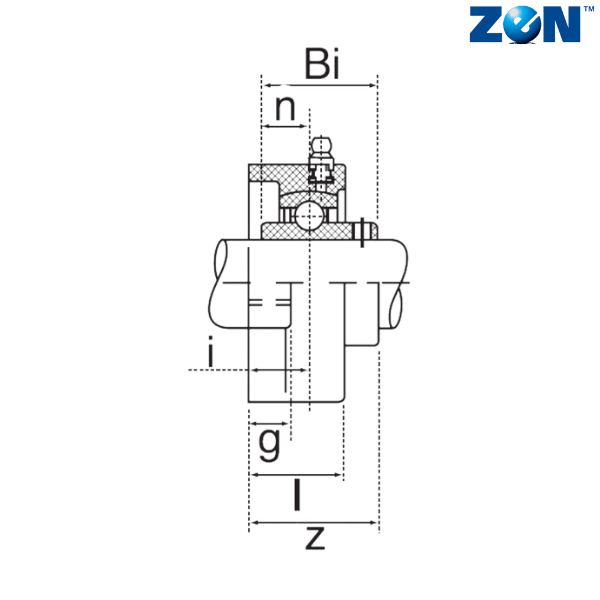

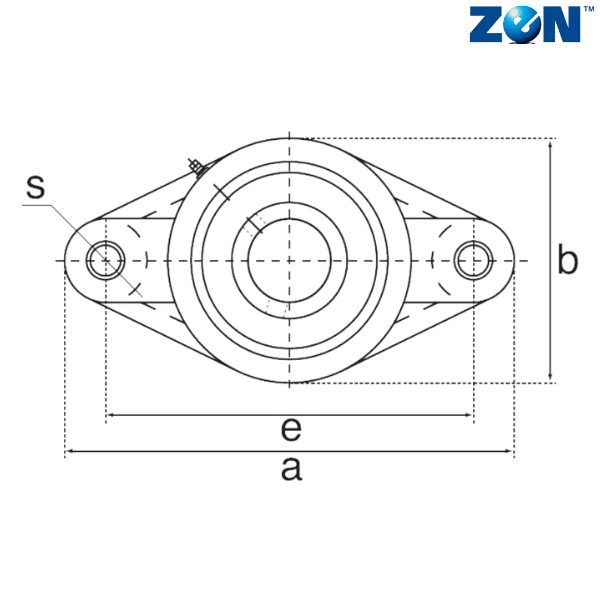

Inner Diameter (d) mm - 20
Overall Length (a) mm - 113
Bolt Center to Center Length (e) mm - 90
i (mm) - 15
Overall Width (b) mm - 60
l (mm) - 25.5
g (mm) - 11
s (mm) - 12
Weight (kg) - 0.32
Bearing - SUC204

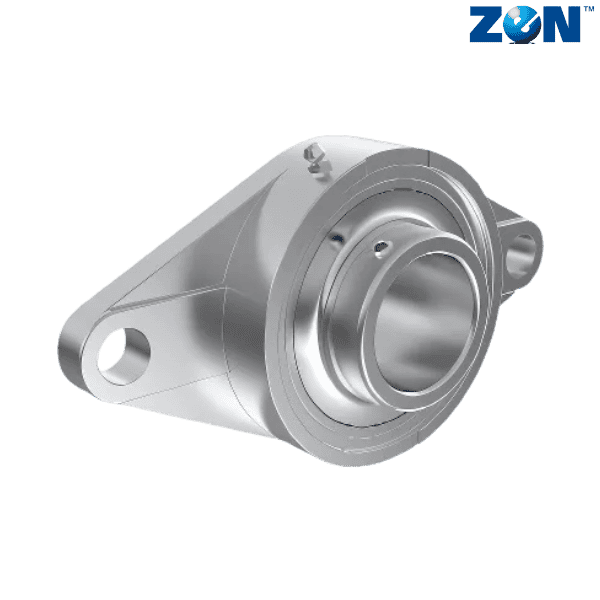

** Images are for representation purposes only
