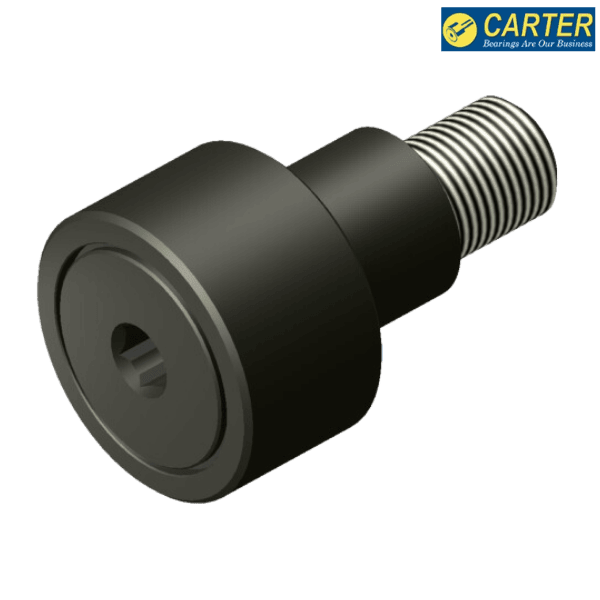

SFHE-96-B CARTER


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - CARTER
Item Number - SFHE-96-B CARTER
Category - Standard Neverlube Cam Follower Eccentric
Also Known As - SFWE-96-A

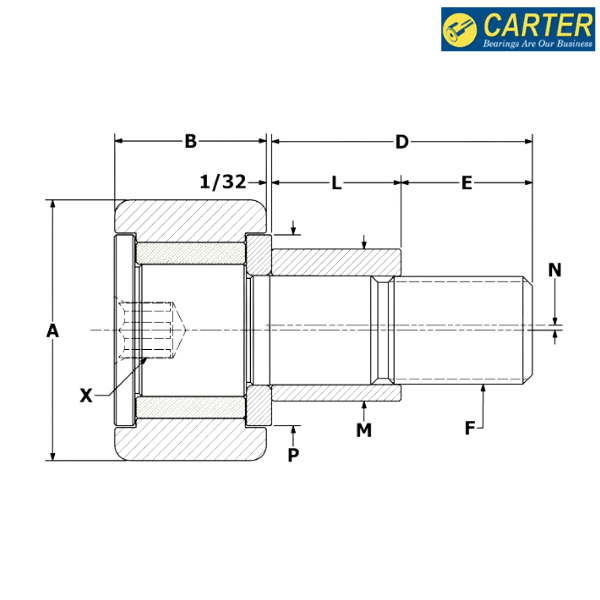

Imperial :
Roller Outer Diameter (A) inch - 3
Roller Width (B) inch - 1.75
Stud Length (D) inch - 2.5
M.E.T. (E) inch - 1.25
Thread Class 2A (F) inch - 1 1/4-12
Thread Diameter (inch) - 1.25
Number of Threads per inch - 12
Hex Size (X) inch - 0.75
Bushing Length (L) inch - 1.25
Bushing Diameter (M) inch - 1.75
Eccentric Offset (N) inch - 0.06
Mounting Bore (inch) - 1.753
Torque (in-lb) * - 1725
Load Factor - 2

Metric :
Roller Outer Diameter (A) mm - 76.2
Roller Width (B) mm - 44.45
Stud Length (D) mm - 63.5
M.E.T. (E) mm - 31.75
Hex Size (X) mm - 19.05
Bushing Length (L) mm - 31.75
Bushing Diameter (M) mm - 44.45
Eccentric Offset (N) mm - 1.524
Mounting Bore (mm) - 44.5262

Notes :
*Clamping torque is based on lubricated threads, if threads are dry, double the value listed

**Images are for representation purposes only
